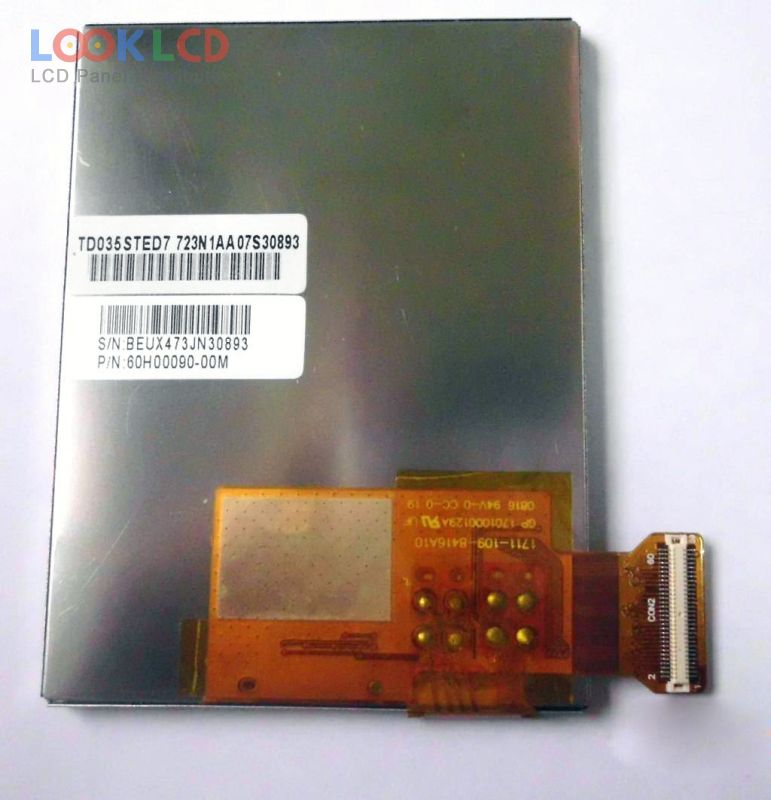

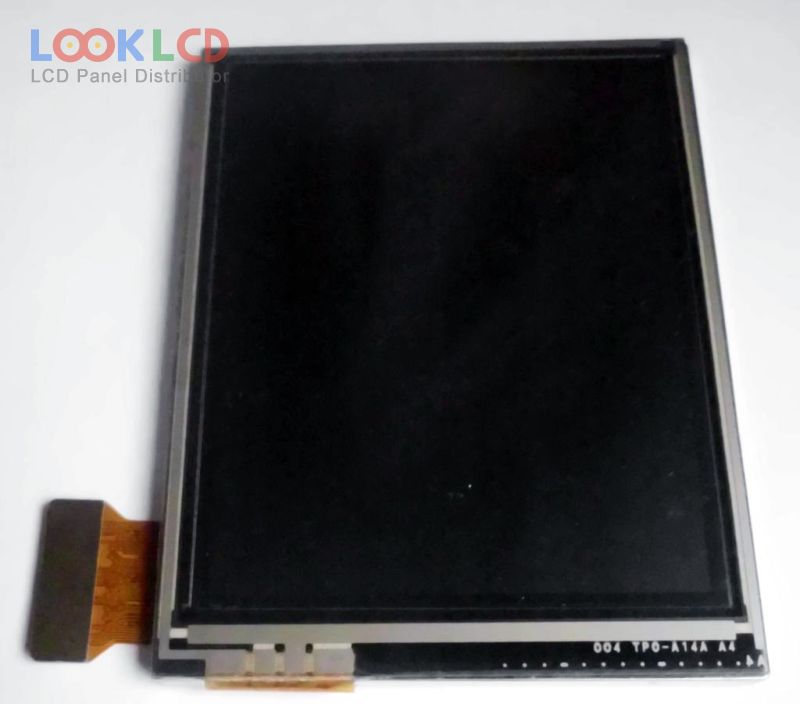

| PartNumber | TD035STED7 |
| Marca | TPO |
| mărimea | 3.5 |
| Aplicație | PDA |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 115 |
| CR | 100:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TPO |
| model de panou | TD035STED7 |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.28×71.04 mm |
| contur | 64×85×5.5 mm |
| suprafaţă | |
| luminozitatea | 115 cd/m² (Typ.) |
| Raport de contrast | 100:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193136% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 60 pins |
| tensiune de intrare | 2.8/2.8/5/10/-5.0V (Typ.)(VDD1/VDD2/AVDD/VGH/VVEE) |
| aplicarea | PDA |
