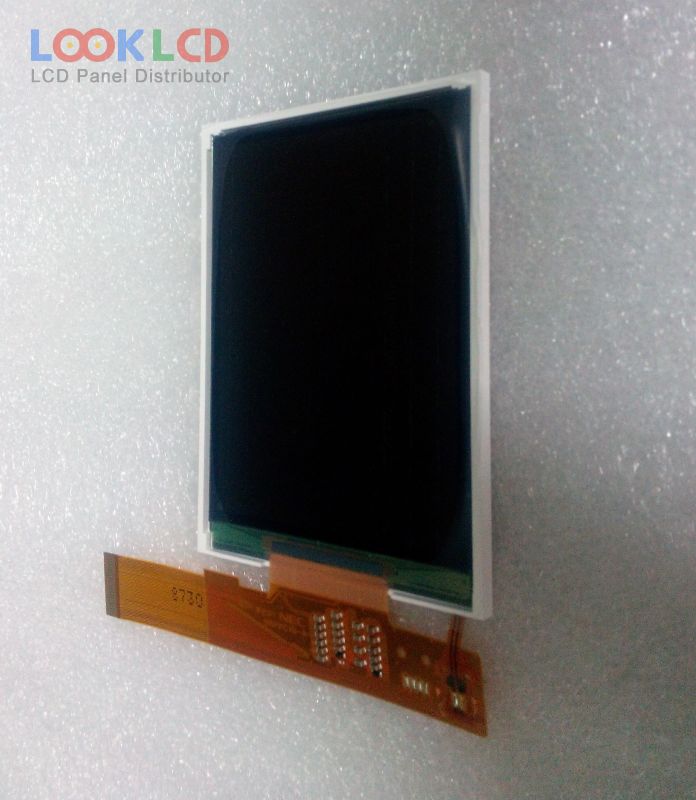

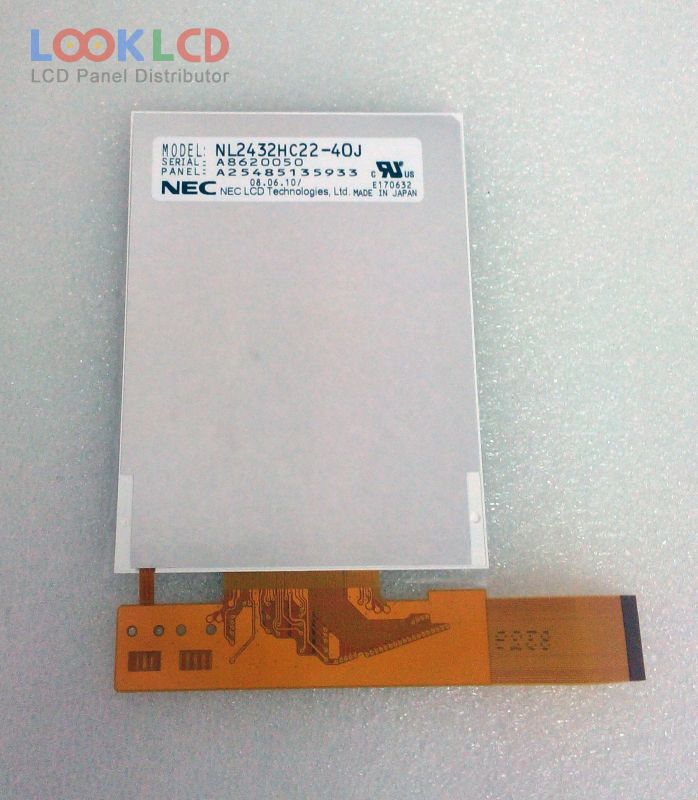

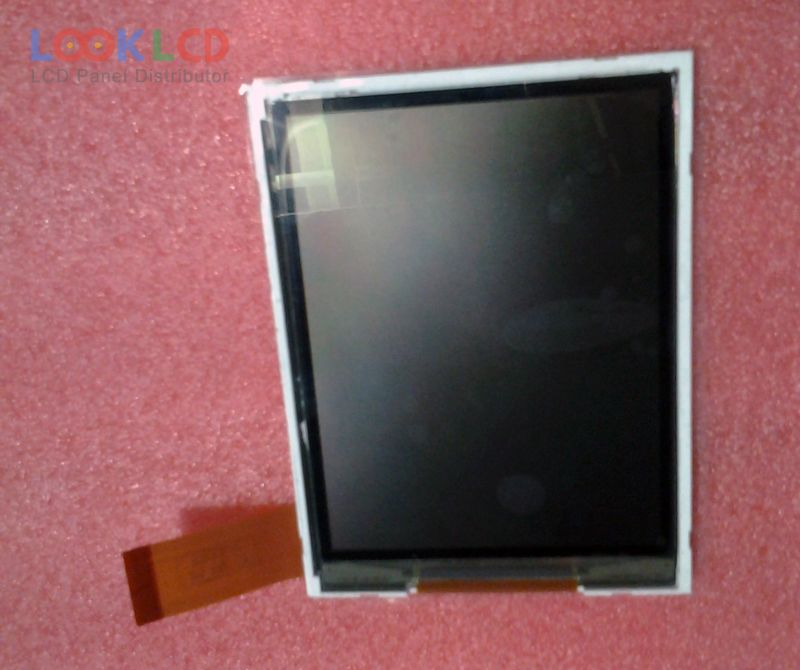

| PartNumber | NL2432HC22-40J |
| Marca | NLT |
| mărimea | 3.5 |
| Aplicație | PDA |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL2432HC22-40J |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 63.5×85×3.2 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193140% |
| timp de raspuns | 7/23 (Typ.)(Tr/Td) |
| unghi de vedere | 35/35/35/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S1PWLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit) + SPI, 45 pins |
| tensiune de intrare | 3.0V (Typ.) |
| aplicarea | PDA |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| NL2432DR22-02B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
