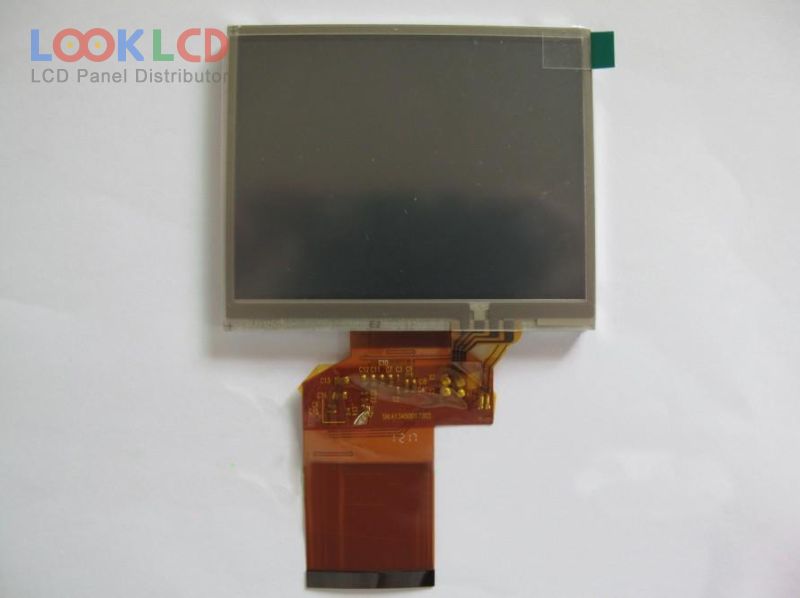

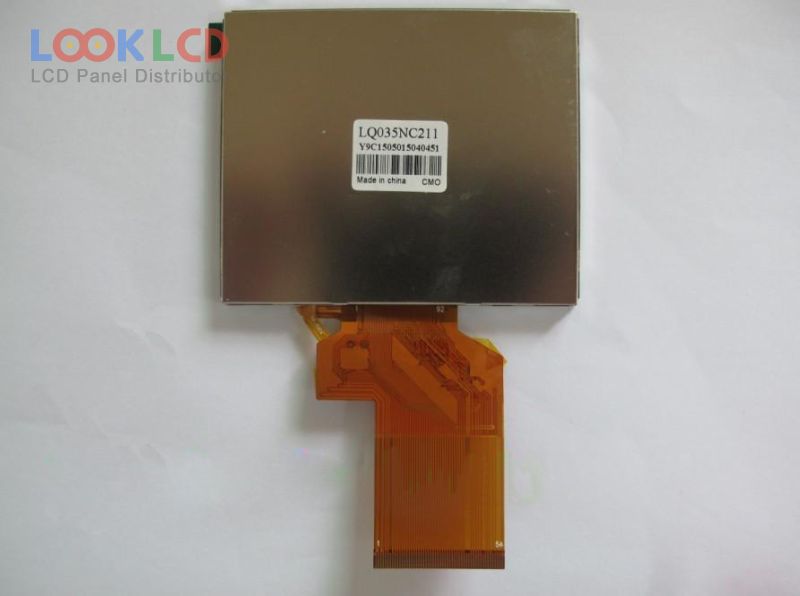

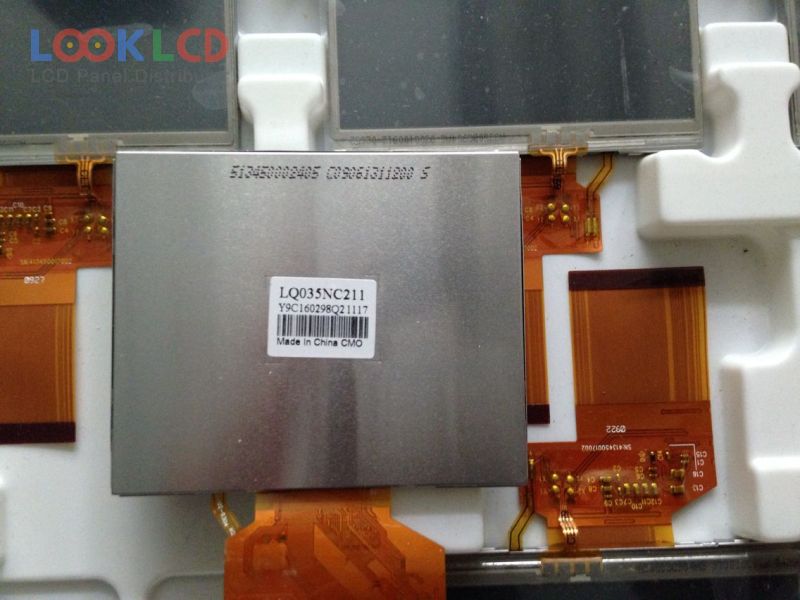

| PartNumber | LQ035NC211 |
| Marca | Innolux |
| mărimea | 3.5 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Parallel/Serial |
| marca panoului | ChiHsin |
| model de panou | LQ035NC211 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.08×52.56 mm |
| contur | 76.9×63.9×4.56 mm |
| suprafaţă | Antiglare (Haze 20%) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 16.7M , CIE193160% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| tensiune de intrare | 3.3V (Typ.)(VCC) |
| aplicarea | DSC |
