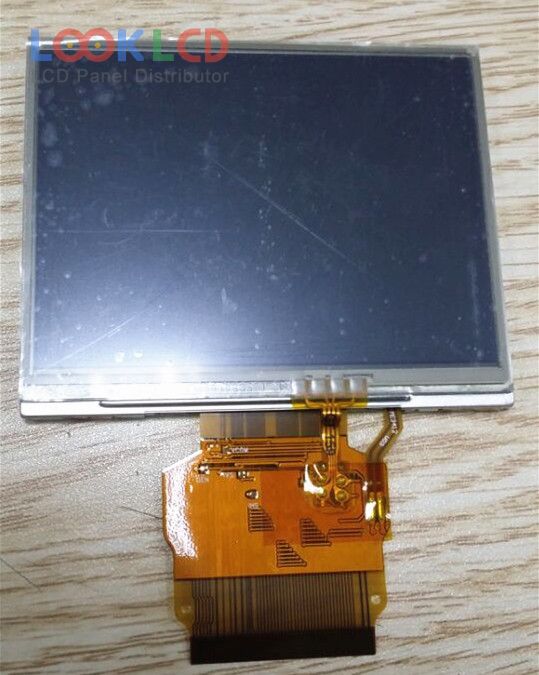

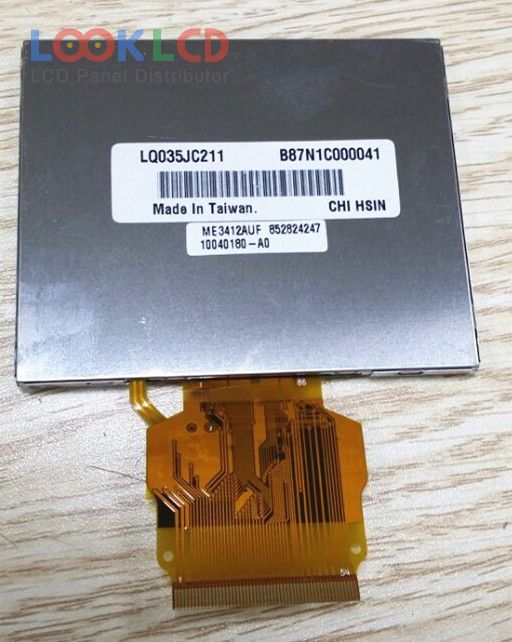

| PartNumber | LQ035JC211 |
| Marca | Innolux |
| mărimea | 3.5 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 400:1 |
| Culori | |
| Iluminare de fundal | |
| Interfață | |
| marca panoului | ChiHsin |
| model de panou | LQ035JC211 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.08×52.56 mm |
| contur | 76.9×63.9 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | , CIE193160% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | |
| rohs: | |
| aplicarea | DSC |
