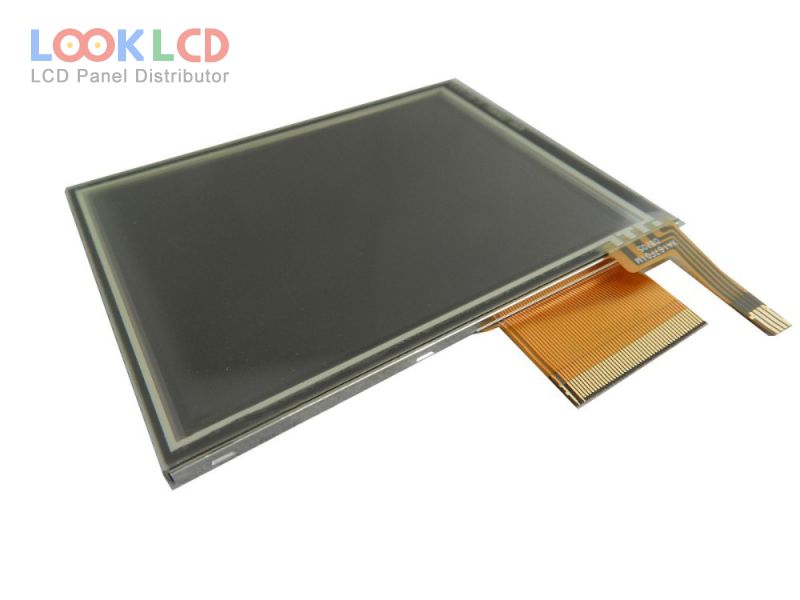

| PartNumber | LQ035Q7DH05 |
| Marca | SHARP |
| mărimea | 3.5 |
| Aplicație | PDA |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 110 |
| CR | 95:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ035Q7DH05 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 65×86.2×4.2 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 110 cd/m² (Typ.) |
| Raport de contrast | 95:1 (Typ.)(Transmissive)3:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193129% |
| timp de raspuns | 15/30 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/50/50 (Typ.)(CR≥2)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 61 pins |
| tensiune de intrare | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| aplicarea | PDA |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
