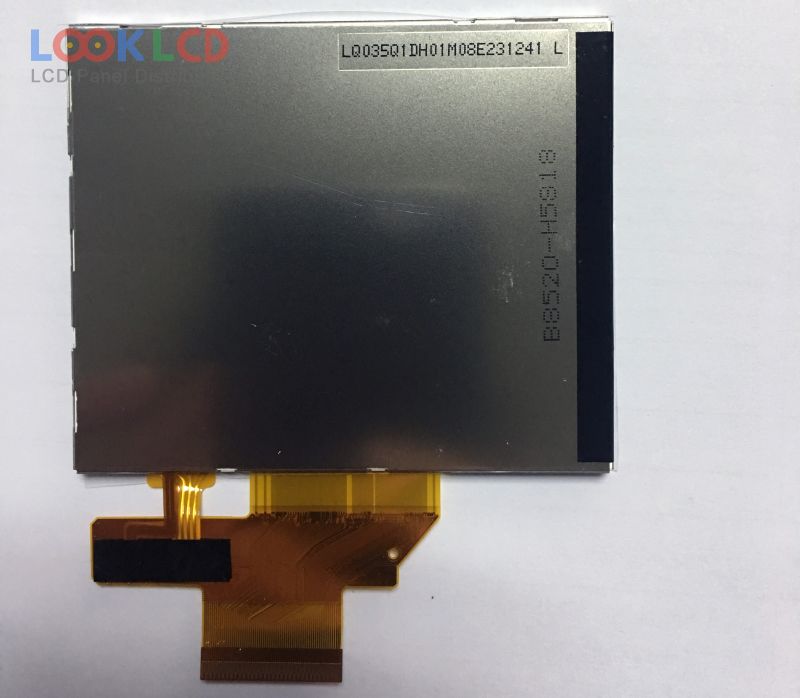

| PartNumber | LQ035Q1DH01 |
| Marca | SHARP |
| mărimea | 3.5 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ035Q1DH01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.56×52.92 mm |
| contur | 76.9×63.9×4.7 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30/30 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VDDIO/VCI) |
| aplicarea | DSC |
