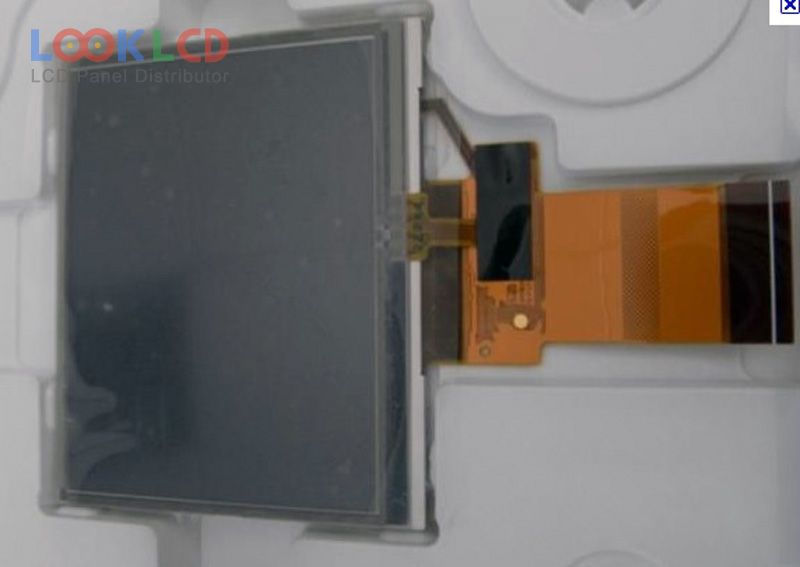

| PartNumber | LQ035Q1DG02 |
| Marca | SHARP |
| mărimea | 3.5 |
| Aplicație | PND |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 320 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ035Q1DG02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.56×52.92 mm |
| contur | 76.9×63.9×4.45 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | 320 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 30/30 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 71 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| rohs: | |
| aplicarea | PND |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| A047FW01 V0 | AUO | 4.7 | 480×272 |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
