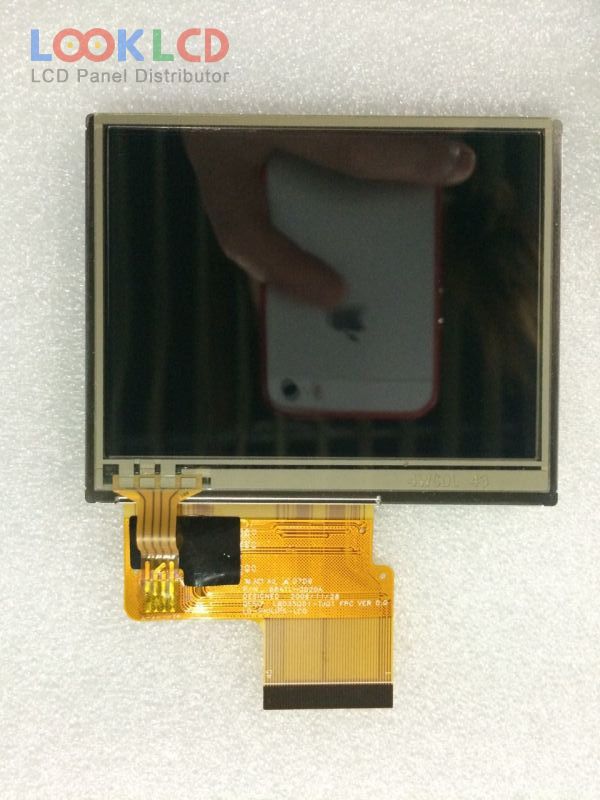

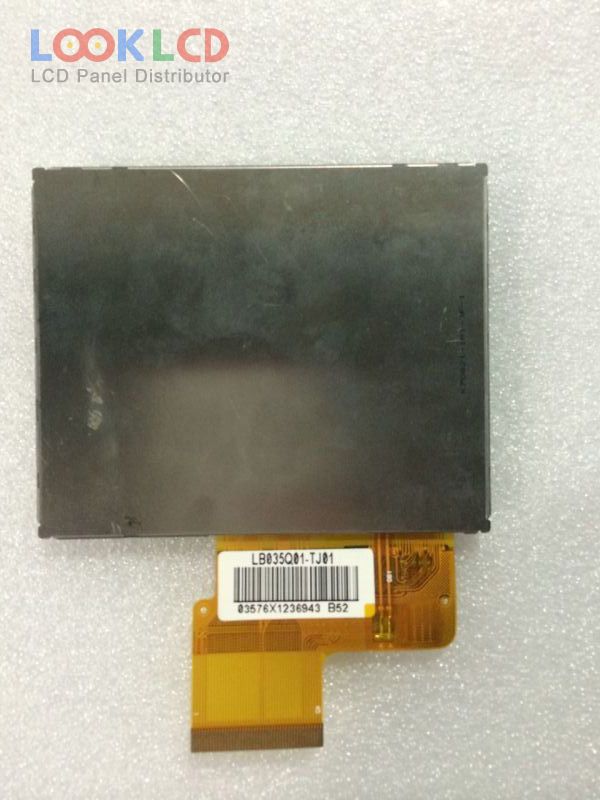

| PartNumber | LB035Q01-TJ01 |
| Marca | LG Display |
| mărimea | 3.5 |
| Aplicație | PND |
| Rezoluţie | 320×240 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | TTL |
| marca panoului | LG.Philips LCD |
| model de panou | LB035Q01-TJ01 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.08×52.56 mm |
| contur | 78.1×62.95×1.53 mm |
| suprafaţă | Hard coating |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 70Hz |
| interfață de semnal | TTL (1 ch, 8-bit), 45 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VDD/AVDD) |
| rohs: | |
| aplicarea | PND |
| 990000738A | Innolux | 3.5 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LB035Q03-TD02 | LG Display | 3.5 | 320×240 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LMS350GF12-005 | Samsung | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| 35HVE0H | SII | 3.5 | 320×480 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| LQ036T1DG01 | SHARP | 3.6 | 272×480 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LR043JC211 | Innolux | 4.3 | 480×272 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
