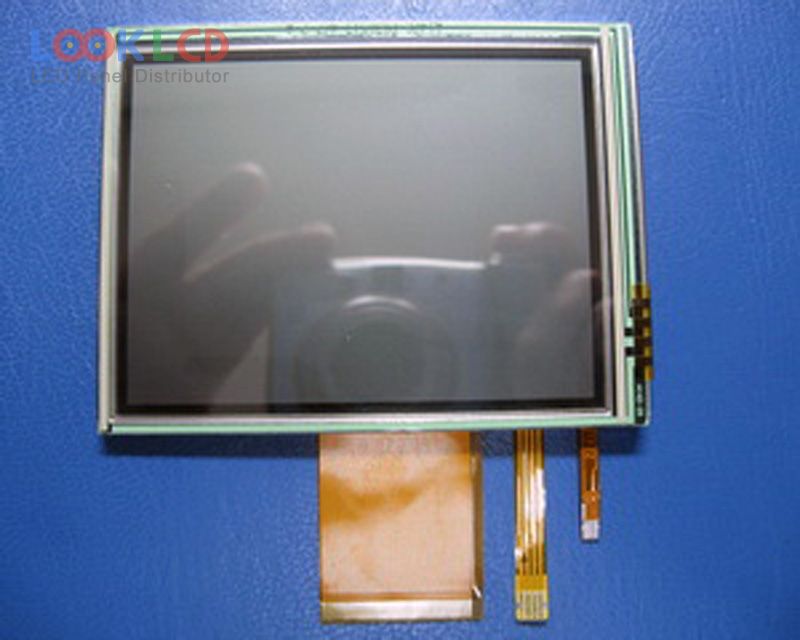

| PartNumber | LQ035Q7DB04 |
| Marca | SHARP |
| mărimea | 3.5 |
| Aplicație | |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 50 |
| CR | 70:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ035Q7DB04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 65×85×4.8 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 50 cd/m² (Typ.) |
| Raport de contrast | 70:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 60/100 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 5.0/3.3/15.0/-10.0V (Typ.)(VSGA/VSHD/VDD/VEE) |
