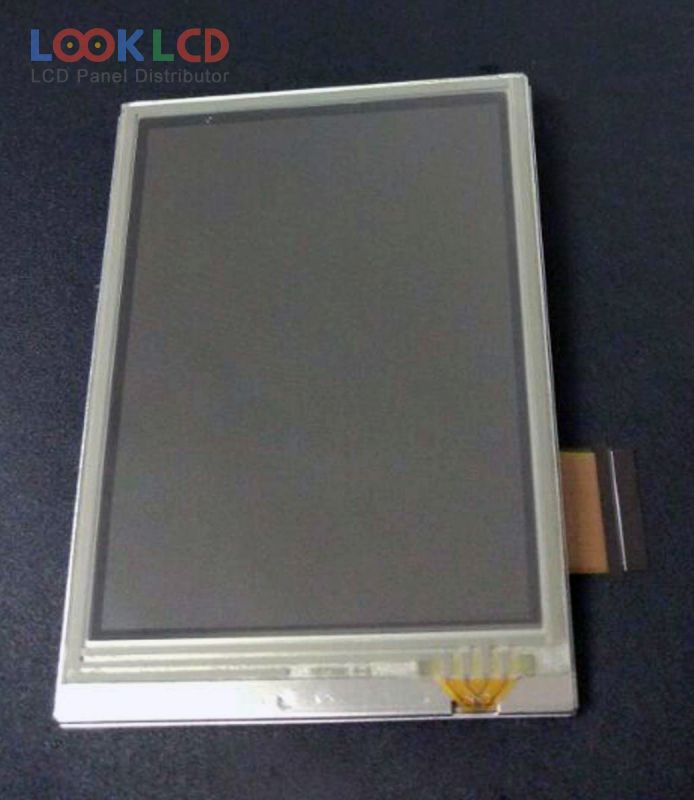

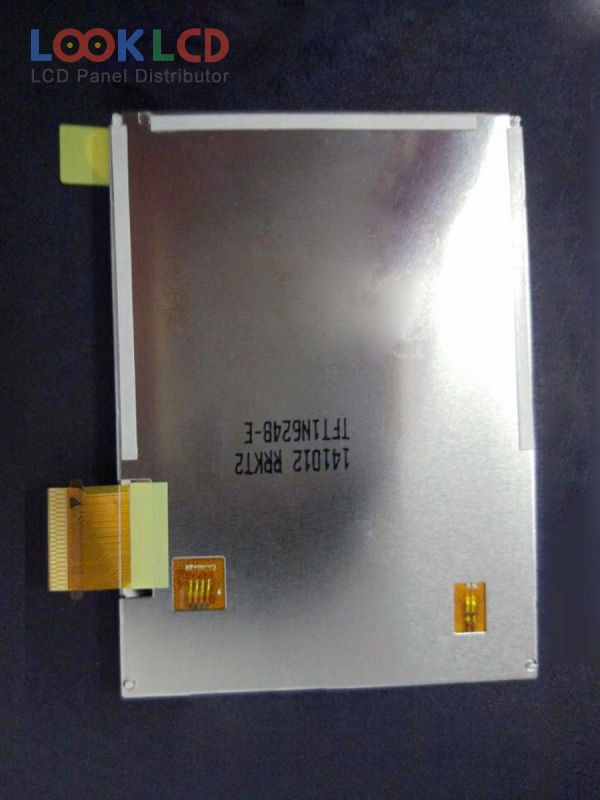

| PartNumber | TFT1N6248-E |
| Marca | Other |
| mărimea | 3.2 |
| Aplicație | |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 80 |
| CR | |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TRULY |
| model de panou | TFT1N6248-E |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.2 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 48.6×64.8 mm |
| contur | 57.54×79.2 mm |
| suprafaţă | |
| luminozitatea | 80 cd/m² (Typ.) |
| Raport de contrast | |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 48 (Typ.)(Tr+Td) |
| unghi de vedere | 34/45/80/42 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| tensiune de intrare | 2.8V (Typ.) |
