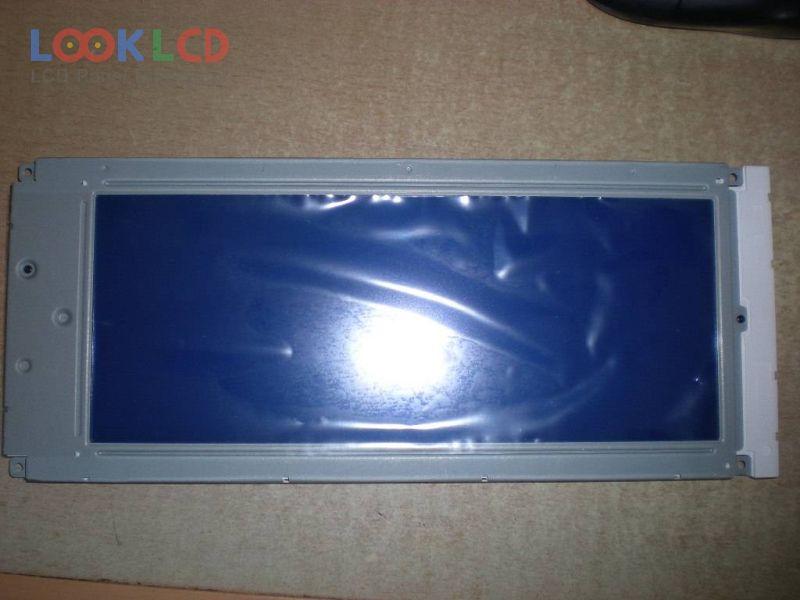

| PartNumber | LSUGC202XA |
| Marca | ALPS |
| mărimea | 8.9 |
| Aplicație | |
| Rezoluţie | 640×240 |
| Compoziţie | LCM |
| Luminozitate | 160 |
| CR | 3:1 |
| Culori | Monochrome |
| Iluminare de fundal | CCFL |
| Interfață | Parallel Data |
| marca panoului | ALPS |
| model de panou | LSUGC202XA |
| tip panou | STN-LCD , LCM |
| dimensiunea panoului | 8.9 inch |
| rezoluţie | 640×240 , HVGA |
| modul de afișare | STN, Blue mode |
| Zonă activă | 211.18×79.18 mm |
| contur | 270.2×112.2 mm |
| suprafaţă | |
| luminozitatea | 160 cd/m² (Typ.) |
| Raport de contrast | 3 : 1 (Typ.) |
| culorile afișajului | Monochrome |
| timp de raspuns | 250/120 (Typ.)(Tr/Td) |
| unghi de vedere | 30/30/15/30 (Min.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel Data (4-bit), 12 pins |
| rohs: |
