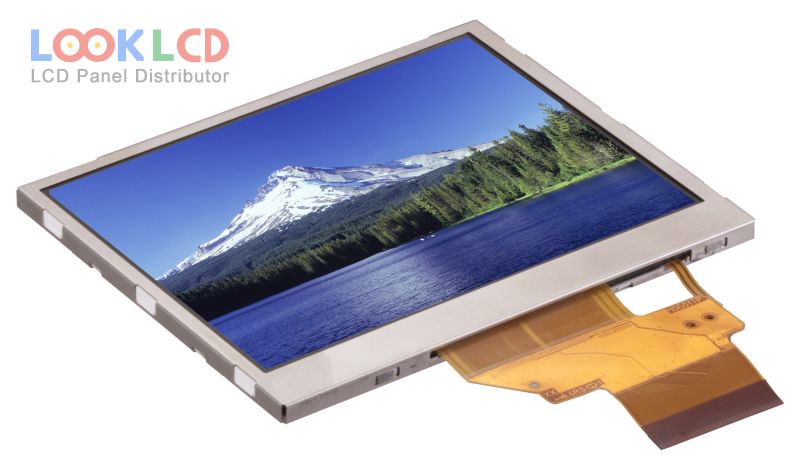

| PartNumber | LQ035Q3DG01 |
| Marca | SHARP |
| mărimea | 3.5 |
| Aplicație | HHP |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ035Q3DG01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.56×52.92 mm |
| contur | 76.9×63.9 mm |
| suprafaţă | Antiglare |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 8/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VDDIO/VCI) |
| aplicarea | HHP |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| 28QVF2J | SII | 2.8 | 240×320 |
| 32WQF0H | SII | 3.2 | 240×400 |
| AM-320240-015A | Other | 1.5 | 320×240 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| COM32H3N74ULC | ORTUSTECH | 3.2 | 480×800 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ030Q3DG01 | SHARP | 3.0 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
