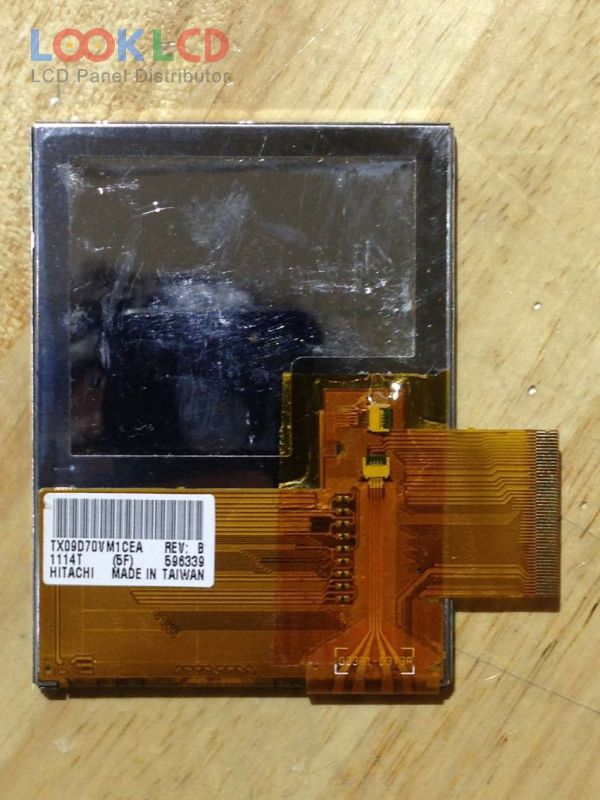

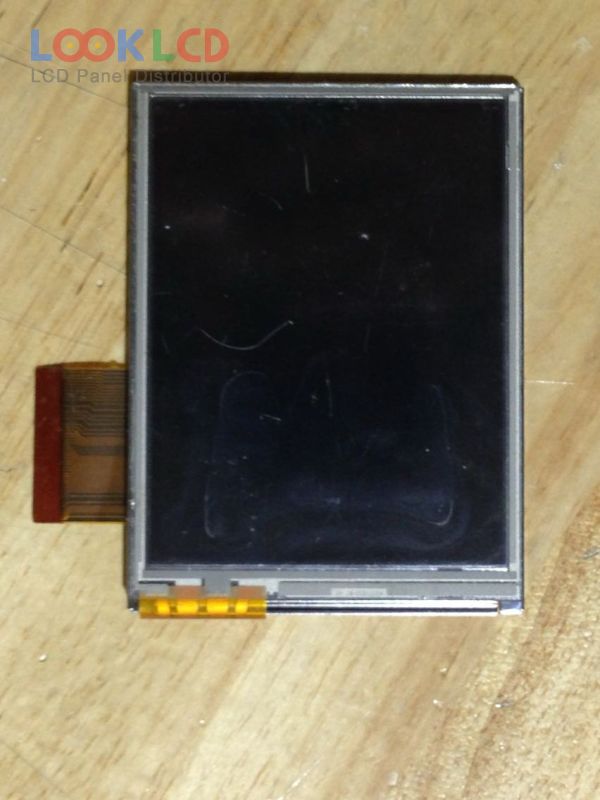

| PartNumber | TX09D70VM1CEA |
| Marca | KOE |
| mărimea | 3.5 |
| Aplicație | HHP |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 320 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HITACHI |
| model de panou | TX09D70VM1CEA |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, TMR |
| Zonă activă | 53.64×71.52 mm |
| contur | 64×86×5.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 320 cd/m² (Typ.) |
| Raport de contrast | 300 : 1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/80/60 (Typ.)(CR≥5)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S2PWLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 3.3/8.48/15.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | HHP |
