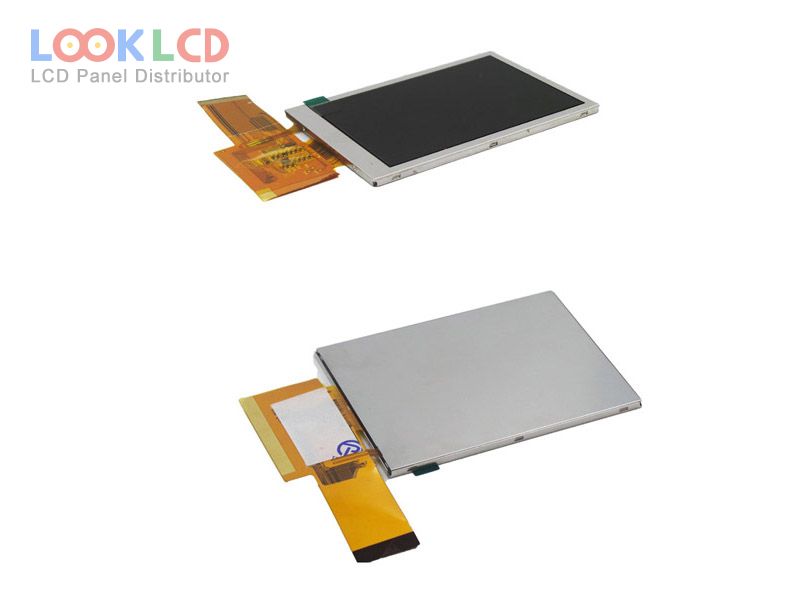

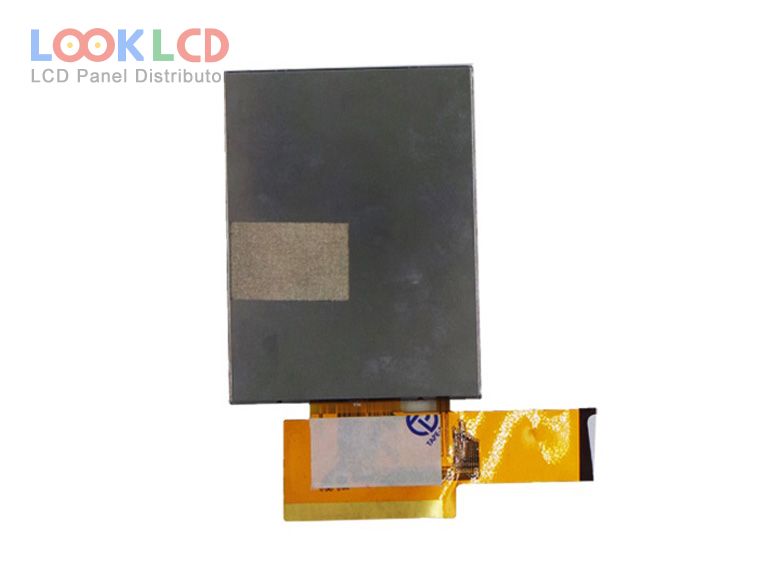

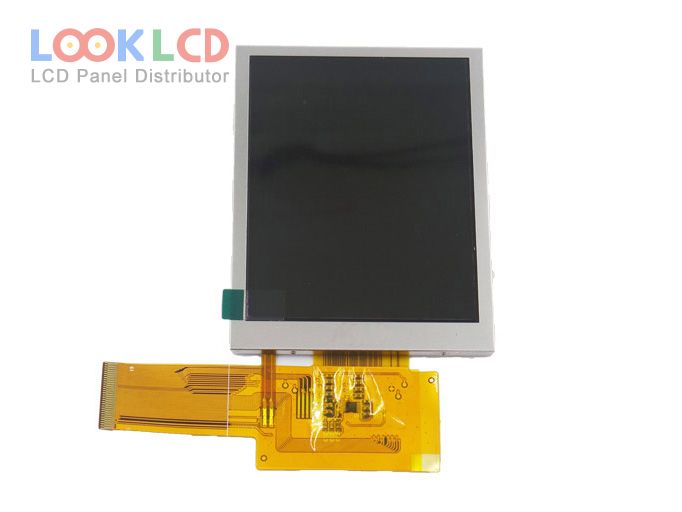

| PartNumber | S035V01 |
| Marca | CDTECH |
| mărimea | 3.5 |
| Aplicație | HHP |
| Rezoluţie | 480×640 |
| Compoziţie | LCM |
| Luminozitate | 800 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | CPU/RGB/SPI |
| marca panoului | CDTECH |
| model de panou | S035V01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 480(RGB)×640 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 53.28×71.04 mm |
| contur | 64×85 mm |
| suprafaţă | |
| luminozitatea | 800 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S2PWLEDWithout Driver |
| interfață de semnal | CPU/RGB/SPI, 61 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| aplicarea | HHP |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| PD035VX2 | E Ink | 3.5 | 640×480 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0350AMG-4 | Other | 3.5 | 320×240 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LS013B4DN04 | SHARP | 1.35 | 96×96 |
| LS024Q3UX12(G) | SHARP | 2.4 | 320×240 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
