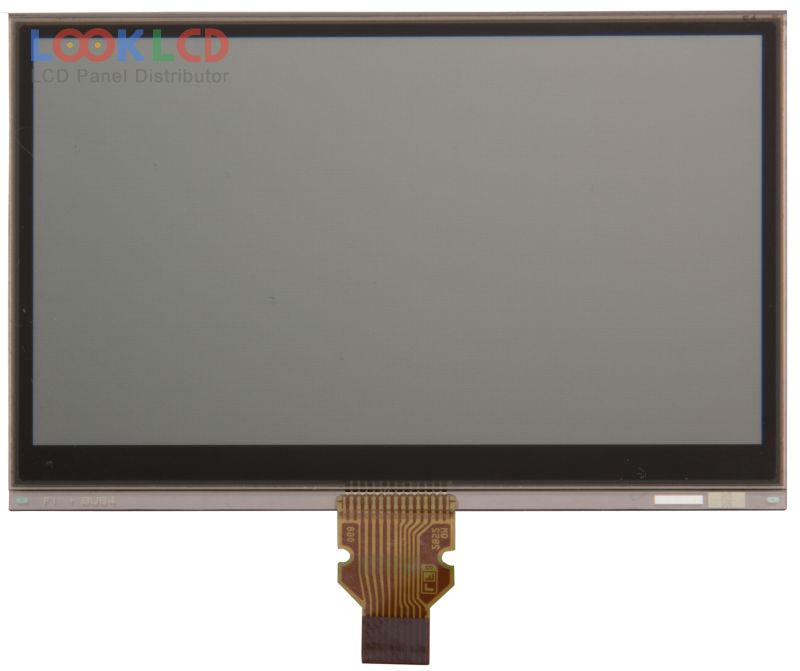

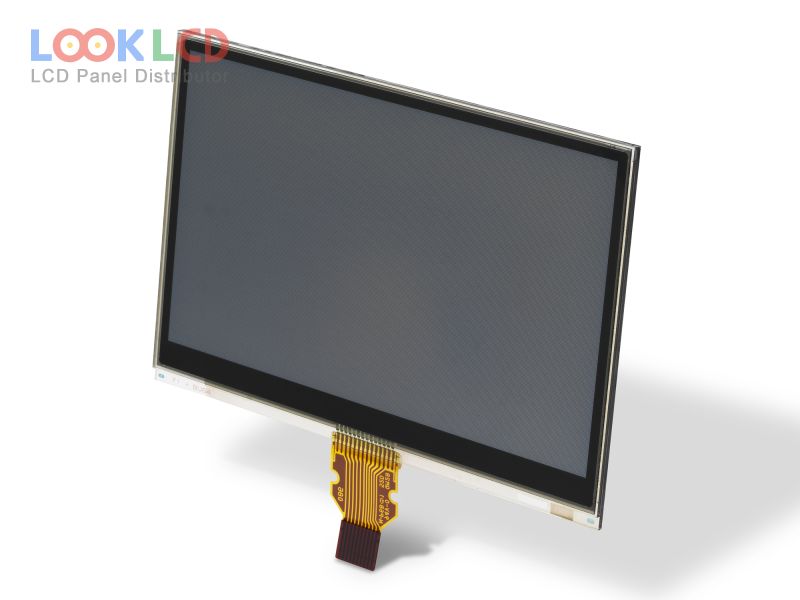

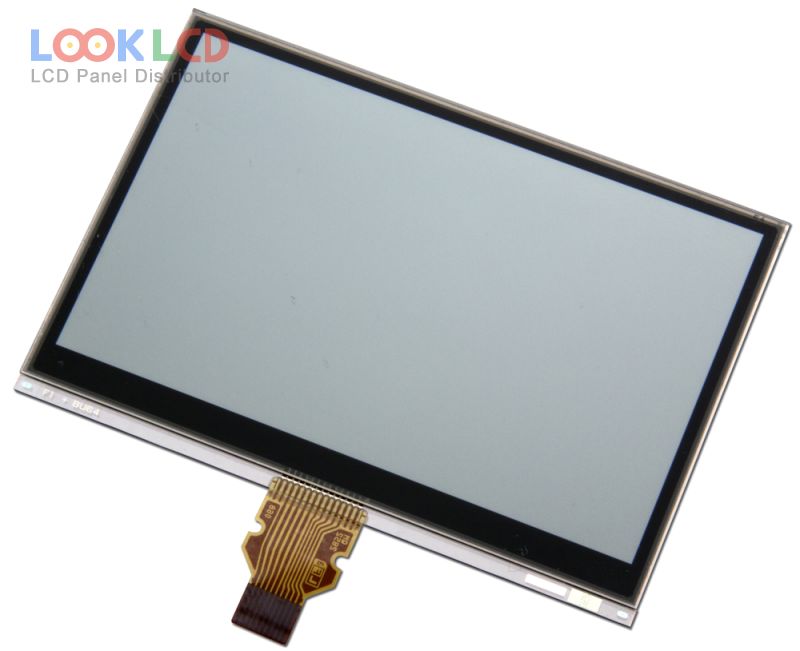

| PartNumber | LS027B7DH01 |
| Marca | SHARP |
| mărimea | 2.7 |
| Aplicație | HHP |
| Rezoluţie | 400×240 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | Monochrome |
| Iluminare de fundal | No B/L |
| Interfață | SPI |
| marca panoului | SHARP |
| model de panou | LS027B7DH01 |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 2.7 inch |
| rezoluţie | 400×240 , WQVGA |
| modul de afișare | Transflective |
| Zonă activă | 58.8×35.28 mm |
| contur | 62.8×42.82 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | |
| Raport de contrast | 14:1 (Typ.)(Reflective) |
| culorile afișajului | Monochrome (1-bit) |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 55/55/60/60 (Min.)(CR≥2)(L/R/U/D) |
| tip lampa | No B/L |
| interfață de semnal | SPI, 10 pins |
| tensiune de intrare | 5.0/5.0V (Typ.)(VDD/VDDA) |
| aplicarea | HHP |
