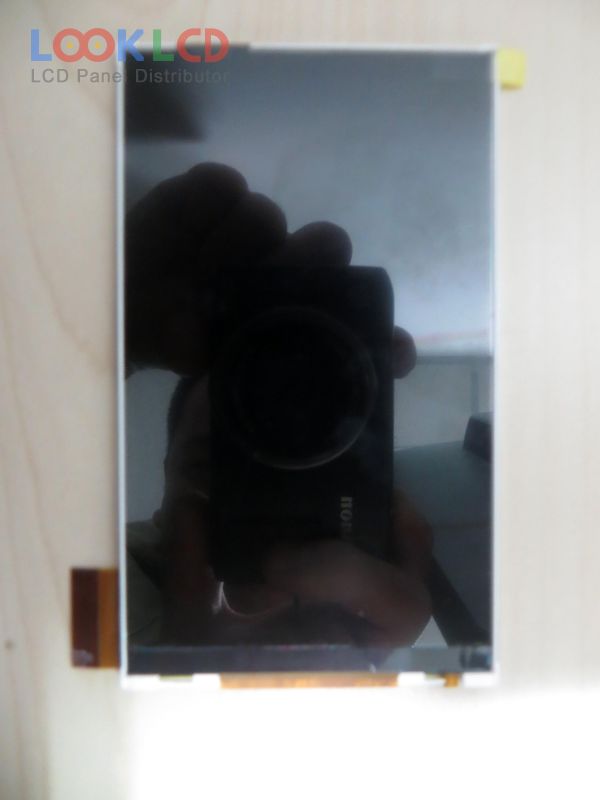

| PartNumber | LQ040Y3DX80 |
| Marca | SHARP |
| mărimea | 4.0 |
| Aplicație | HHP |
| Rezoluţie | 480×800 |
| Compoziţie | LCM |
| Luminozitate | 320 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ040Y3DX80 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.0 inch |
| rezoluţie | 480(RGB)×800 , WVGA |
| modul de afișare | New Mode2, Normally Black, Transmissive |
| Zonă activă | 51.84×86.4 mm |
| contur | 57.14×96.85×2 mm |
| suprafaţă | |
| luminozitatea | 320 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 40 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 51 pins |
| tensiune de intrare | 2.8/1.8V (Typ.)(VCI/IOVCC) |
| aplicarea | HHP |
| AMS397GE66 | Samsung | 4.0 | 480×800 |
| CLAF040LE21 AX | CPT | 4.0 | 480×800 |
| LH400WS1-SD03 | LG Display | 4.0 | 640×1136 |
| LQ040Y3DX80 | SHARP | 4.0 | 480×800 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LS040T3SW01 | SHARP | 4.0 | 540×960 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| PA040XS1 | E Ink | 4.0 | 320×234 |
| TM040YDZ01 | Tianma | 4.0 | 480×800 |
| TX10D121VM0AAA | JDI | 4.0 | 480×800 |
| 28QVF1J | SII | 2.8 | 240×320 |
| 32NHF0H | SII | 3.2 | 360×640 |
| 35WVF1H | SII | 3.5 | 480×800 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ038Q7DB03 | SHARP | 3.8 | 240×320 |
| LQ038Q7DB03A | SHARP | 3.8 | 240×320 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| LS024Q3UX05 | SHARP | 2.4 | 240×320 |
