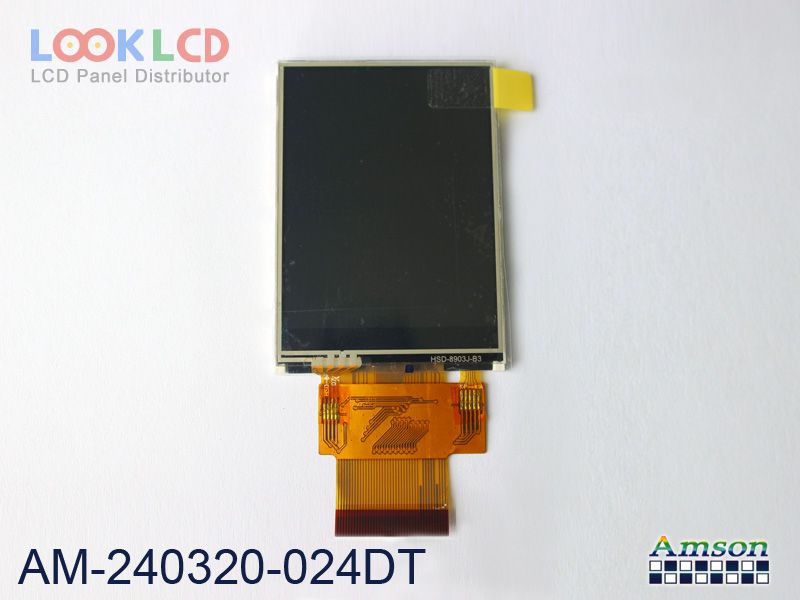

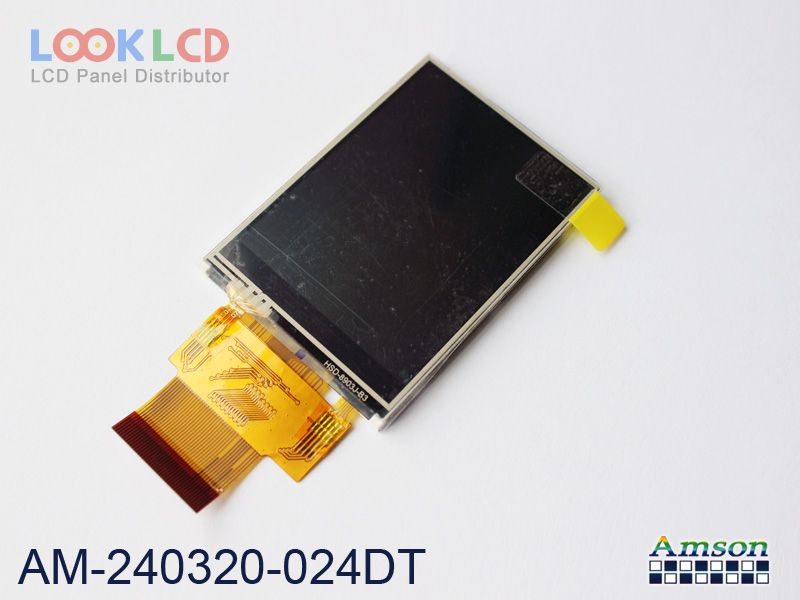

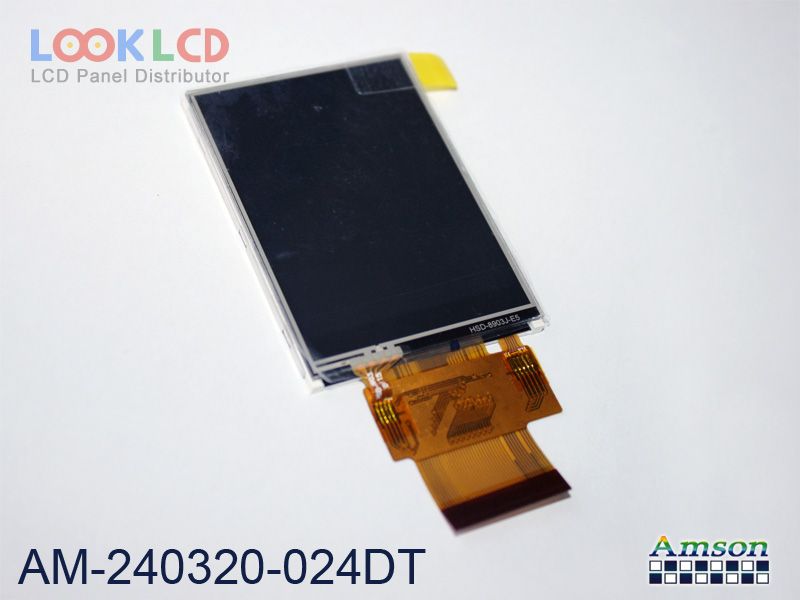

| PartNumber | AM-240320-024DT |
| Marca | Other |
| mărimea | 2.4 |
| Aplicație | HHP |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | CPU |
| marca panoului | Amson |
| model de panou | AM-240320-024DT |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.4 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 36.72×48.96 mm |
| contur | 42.72×60.26×3.8 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | 262K |
| timp de raspuns | |
| unghi de vedere | |
| tip lampa | 4 stringsWLEDWithout Driver |
| interfață de semnal | 8/16-bit 8080 parallel, 40 pins |
| tensiune de intrare | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| aplicarea | HHP |
