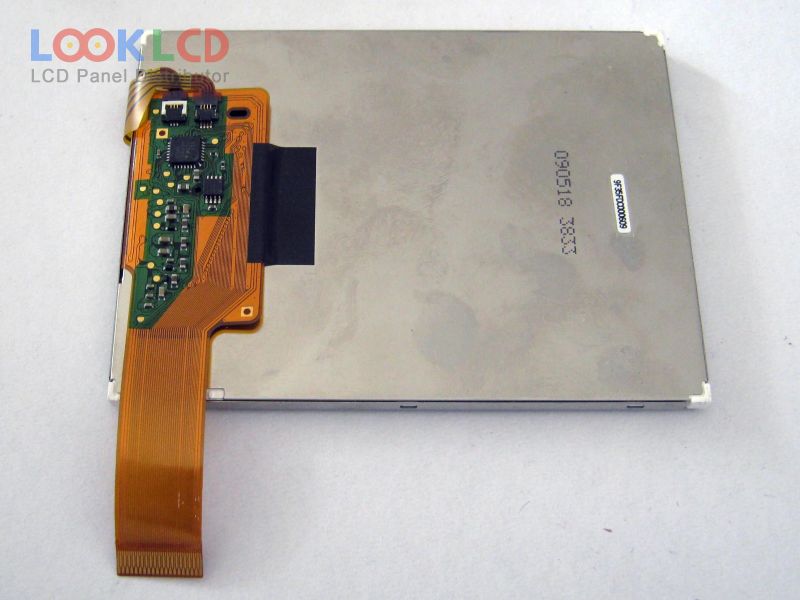

| PartNumber | COM35H3M10XTC |
| Marca | ORTUSTECH |
| mărimea | 3.5 |
| Aplicație | HHP |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 190 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | ORTUSTECH |
| model de panou | COM35H3M10XTC 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 63.5×85×5.53 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 190 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 40/60 (Max.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 39 pins |
| tensiune de intrare | 3.0V (Typ.) |
| aplicarea | HHP |
