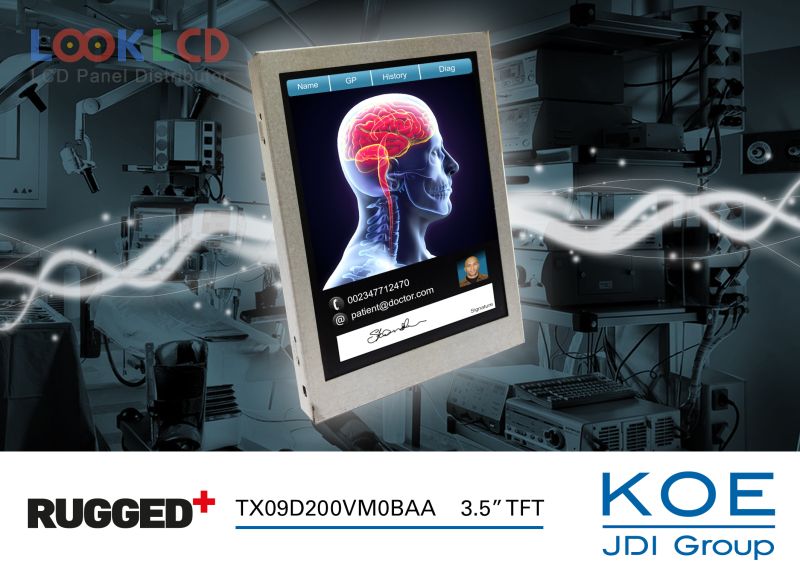

| PartNumber | TX09D200VM0BAA |
| Marca | KOE |
| mărimea | 3.5 |
| Aplicație | HHP |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 600 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | KOE |
| model de panou | TX09D200VM0BAA |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 53.28×71.04 mm |
| contur | 65.68×88.8×12.5 mm |
| suprafaţă | |
| luminozitatea | 600 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 53 (Max.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | HHP |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| LS035Y8DX02A | SHARP | 3.5 | 480×800 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
| 20QVF1H | SII | 2.0 | 240×320 |
| 24QVW1H | SII | 2.4 | 240×320 |
| 28QVF1J | SII | 2.8 | 240×320 |
| 28QVF2J | SII | 2.8 | 240×320 |
| COM24H2N62XLC | ORTUSTECH | 2.4 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| COM41H4M31XLC | ORTUSTECH | 4.1 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LS013B4DN04 | SHARP | 1.35 | 96×96 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
