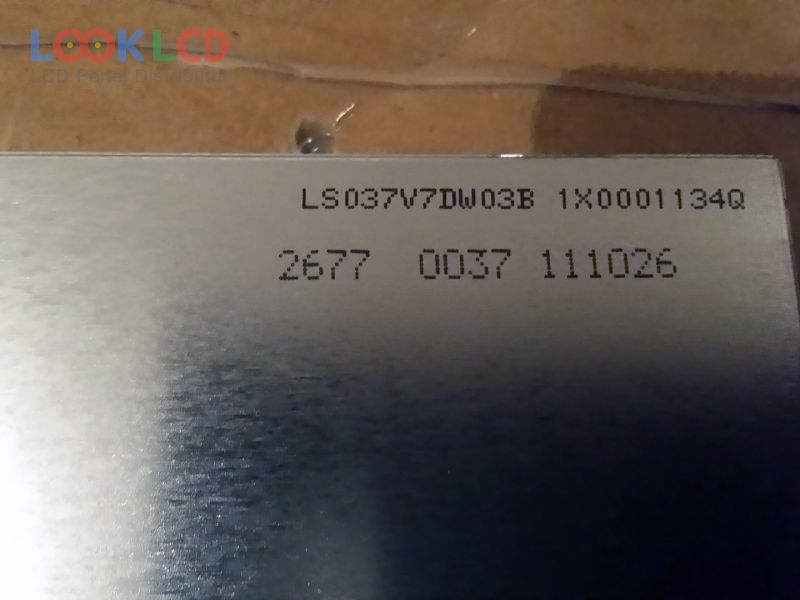

| PartNumber | LS037V7DW03B |
| Marca | SHARP |
| mărimea | 3.7 |
| Aplicație | HHP |
| Rezoluţie | 480×640 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 200:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LS037V7DW03B 2 Compatible model |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 3.7 inch |
| rezoluţie | 480(RGB)×640 , VGA |
| modul de afișare | ASV, Normally Black, Transflective |
| Zonă activă | 56.16×74.88 mm |
| contur | 65×89.2 mm |
| suprafaţă | |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193135% |
| timp de raspuns | 15/20 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| tip lampa | 7S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 51 pins |
| tensiune de intrare | 3.3V (Typ.)(VSHD) |
| aplicarea | HHP |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| 20QVF1H | SII | 2.0 | 240×320 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| DLC0430NZG | Other | 4.3 | 480×272 |
| LQ030B7UB02 | SHARP | 3.0 | 240×400 |
| LQ038Q7DB03A | SHARP | 3.8 | 240×320 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| LQ040Y3DX80 | SHARP | 4.0 | 480×800 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TFTMD030011 | JDI | 3.0 | 720×480 |
