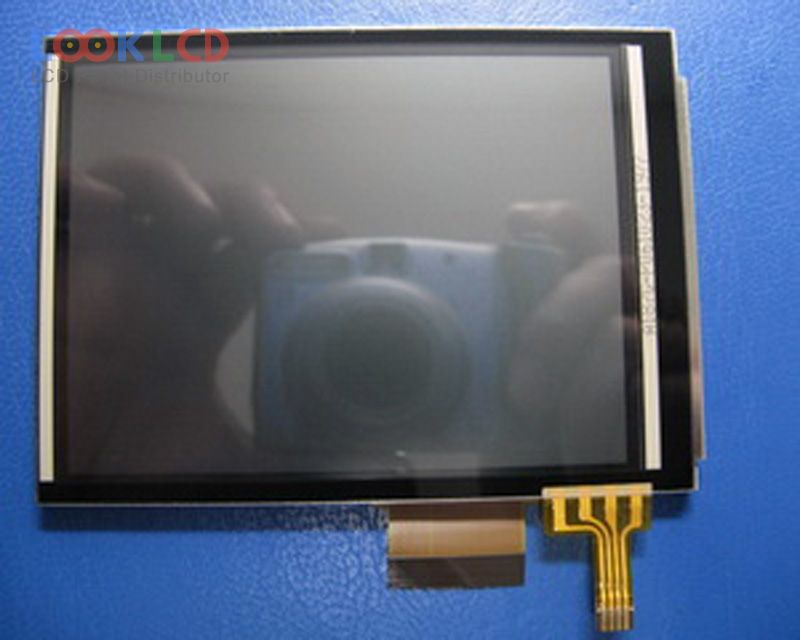

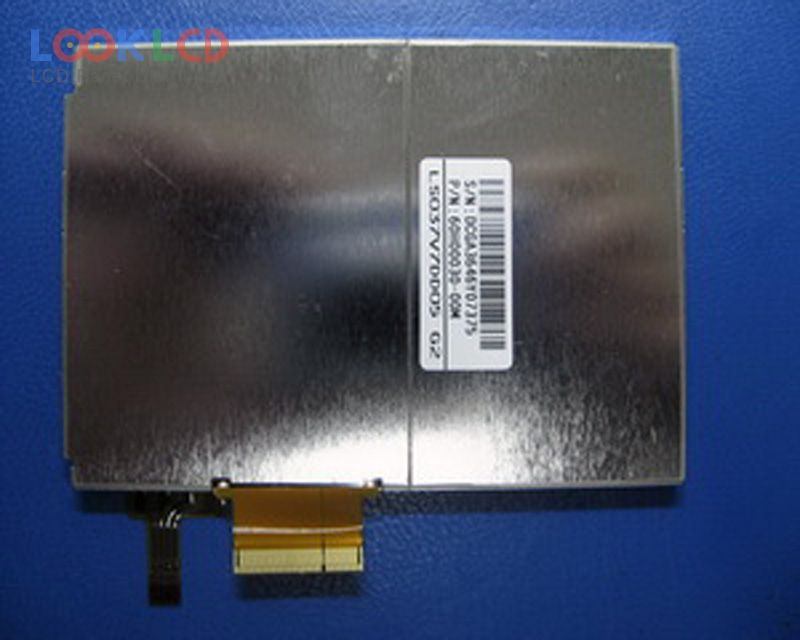

| PartNumber | LS037V7DD05 |
| Marca | SHARP |
| mărimea | 3.7 |
| Aplicație | PDA |
| Rezoluţie | 480×640 |
| Compoziţie | LCM |
| Luminozitate | 130 |
| CR | 100:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LS037V7DD05 |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 3.7 inch |
| rezoluţie | 480(RGB)×640 , VGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 56.16×74.88 mm |
| contur | 65×90.4 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 130 cd/m² (Typ.) |
| Raport de contrast | 100:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193122% |
| timp de raspuns | 20/20 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 61 pins |
| tensiune de intrare | 3.3/5.0/8.0/-4.0/-8.0V (Typ.)(VSHD/VSHA/VDD/VSSD/VEE) |
| aplicarea | PDA |
