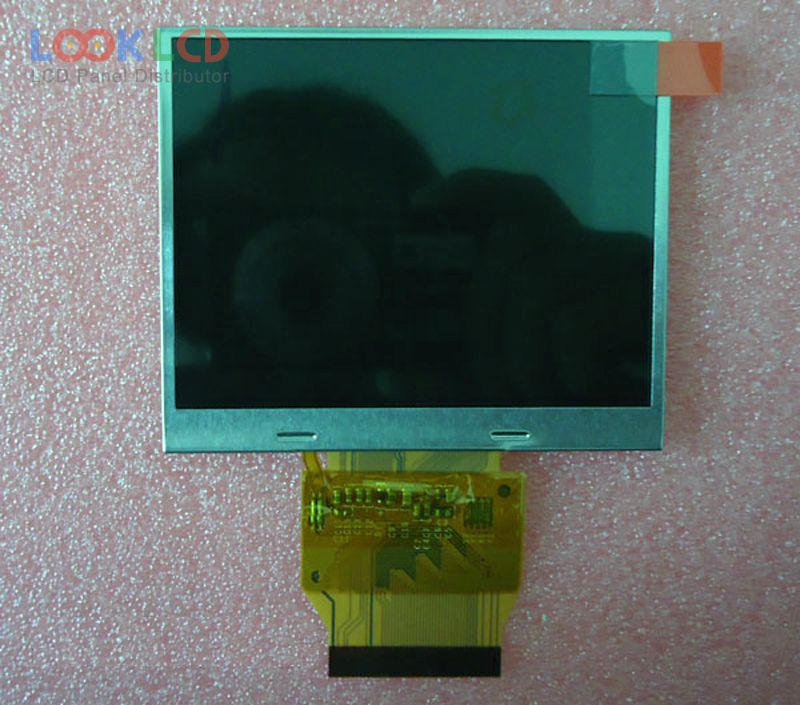

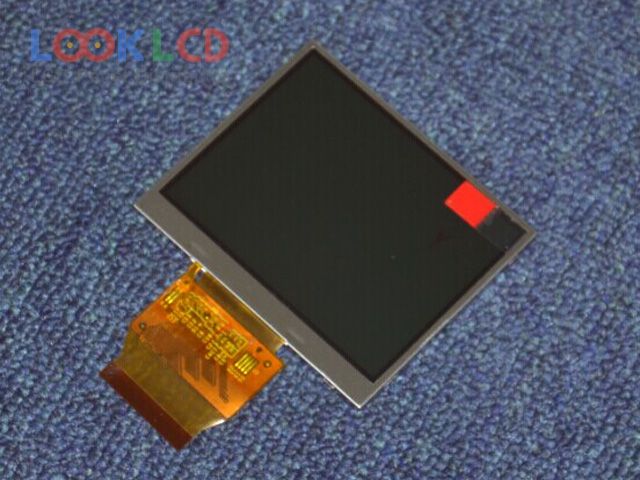

| PartNumber | TM035KDH04 |
| Marca | Tianma |
| mărimea | 3.5 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 420 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Parallel/Serial |
| marca panoului | TIANMA |
| model de panou | TM035KDH04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.08×52.56 mm |
| contur | 76.9×63.9×3 mm |
| suprafaţă | Clear |
| luminozitatea | 420 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Dithering), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DSC |
