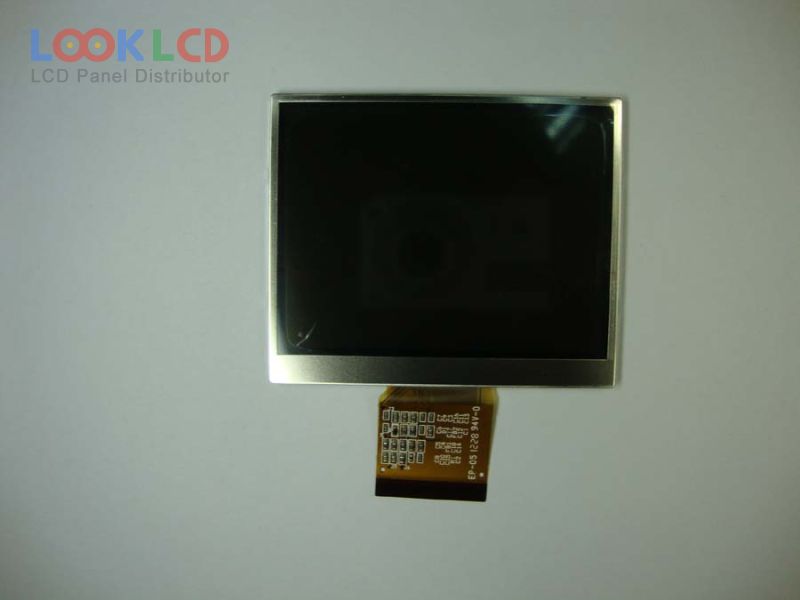

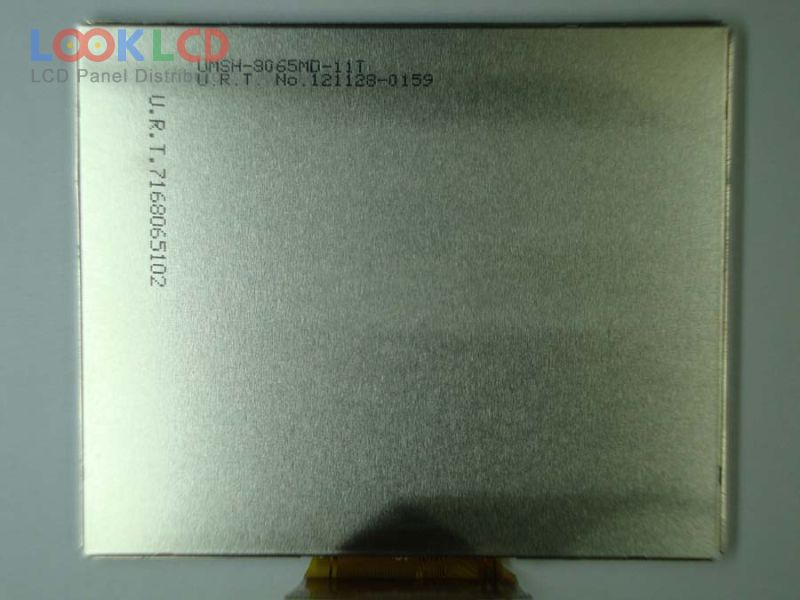

| PartNumber | UMSH-8065MD-11T |
| Marca | Other |
| mărimea | 3.5 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 700 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | Parallel/Serial |

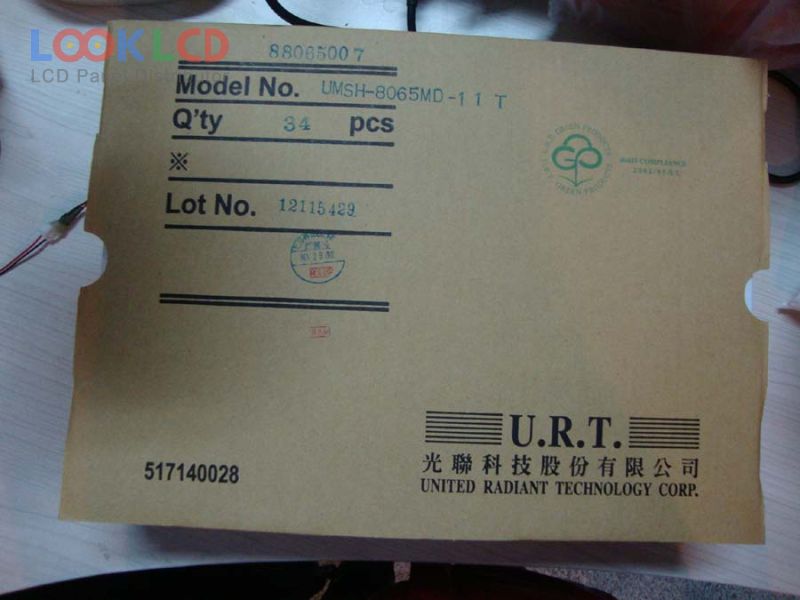

| marca panoului | URT |
| model de panou | UMSH-8065MD-11T |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.08×52.56 mm |
| contur | 76.9×63.9×3.5 mm |
| suprafaţă | |
| luminozitatea | 700 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 15/35 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 70Hz |
| tip lampa | 5S2PWLEDWithout Driver |
| interfață de semnal | Digital RGB (8/24-bit) + SPI, CCIR601/656, 50 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| aplicarea | IA |
| EL160.80.50 ET CC | Lumineq | 3.5 | 160×80 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LH350WV3-SH01 | LG Display | 3.5 | 480×854 |
| LMS350DF03 | Samsung | 3.5 | 320×480 |
| LQ035Q7DB02R | SHARP | 3.5 | 240×320 |
| LTV035QV-F09 | Samsung | 3.5 | 320×240 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| TCG035QVLPDANN-GN50 | Kyocera | 3.5 | 320×240 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
