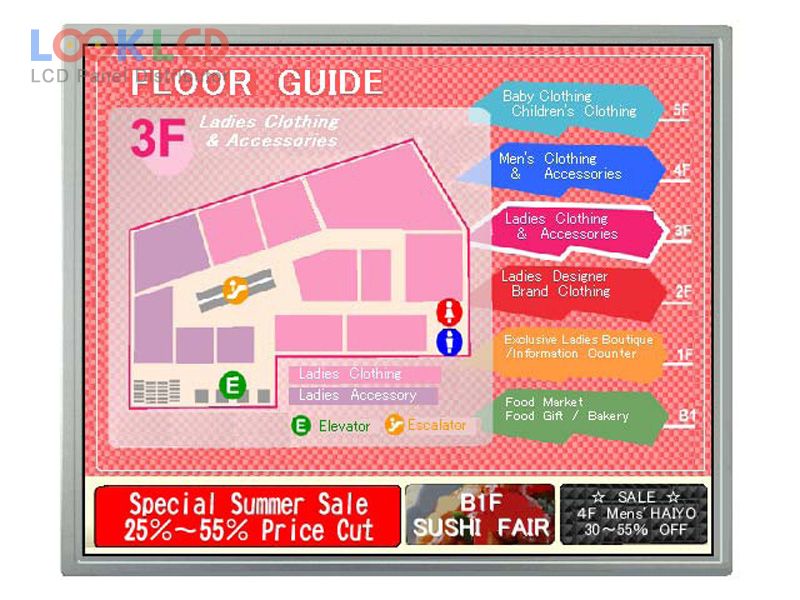

| PartNumber | AA190EA01 |
| Marca | Mitsubishi |
| mărimea | 19.0 |
| Aplicație | IA |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 1500 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Mitsubishi |
| model de panou | AA190EA01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 376.32×301.056 mm |
| contur | 404.2×330×15.4 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 1500 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| timp de raspuns | 4/12 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 strings × 2CNWLEDWithout Driver |
| interfață de semnal | LVDS (2 ch, 6/8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | IA |
