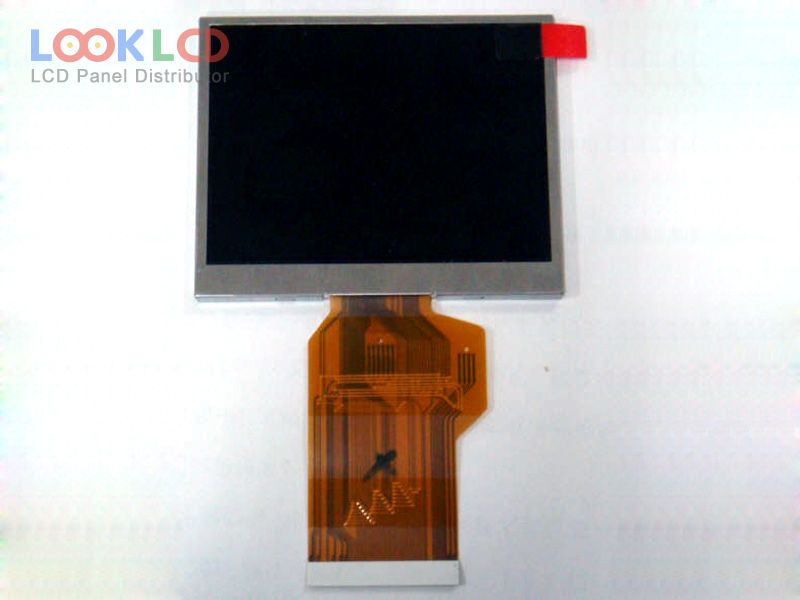

| PartNumber | PT035TN01 V.3 |
| Marca | Innolux |
| mărimea | 3.5 |
| Aplicație | PND |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Parallel/Serial |
| marca panoului | INNOLUX |
| model de panou | PT035TN01 V.3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, TMR |
| Zonă activă | 70.08×52.56 mm |
| contur | 78.2×65×3.8 mm |
| suprafaţă | Hard coating |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 300 : 1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 15/20 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| tensiune de intrare | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | PND |
| CLAA035JA01CW | CPT | 3.5 | 144×480 |
| COM35H3M10XTC | ORTUSTECH | 3.5 | 240×320 |
| EL160.80.50 ET | Lumineq | 3.5 | 160×80 |
| LQ035Q5DG11 | SHARP | 3.5 | 320×240 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| PT035TN23 V.3 | Innolux | 3.5 | 320×240 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| 35HVE0H | SII | 3.5 | 320×480 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| A047FW01 V0 | AUO | 4.7 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| LMS430HF18 | Samsung | 4.3 | 480×272 |
| LQ036T1DG01C | SHARP | 3.6 | 272×480 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| P0430WQLC-T | CMEL | 4.3 | 480×272 |
