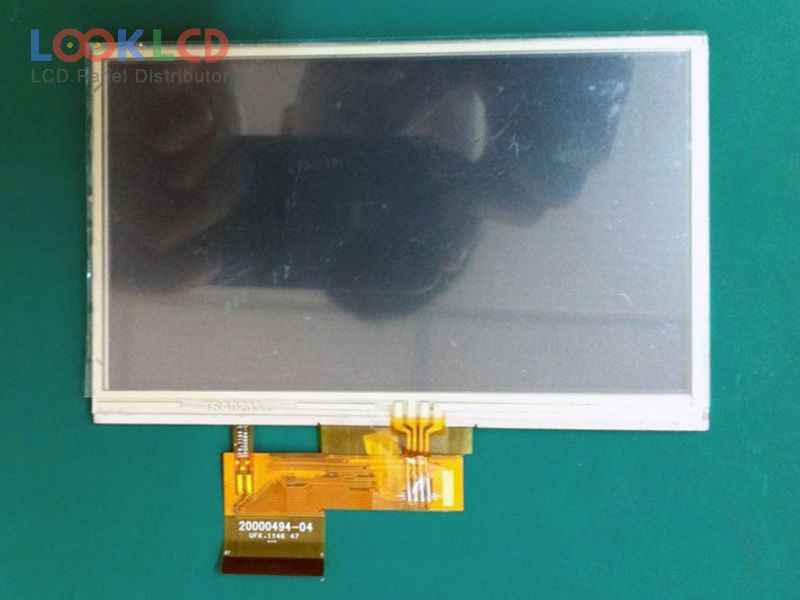

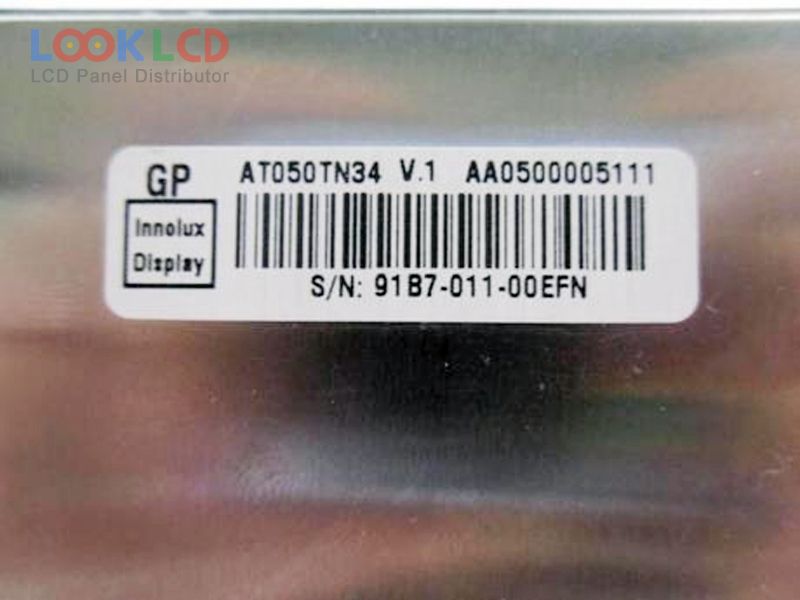

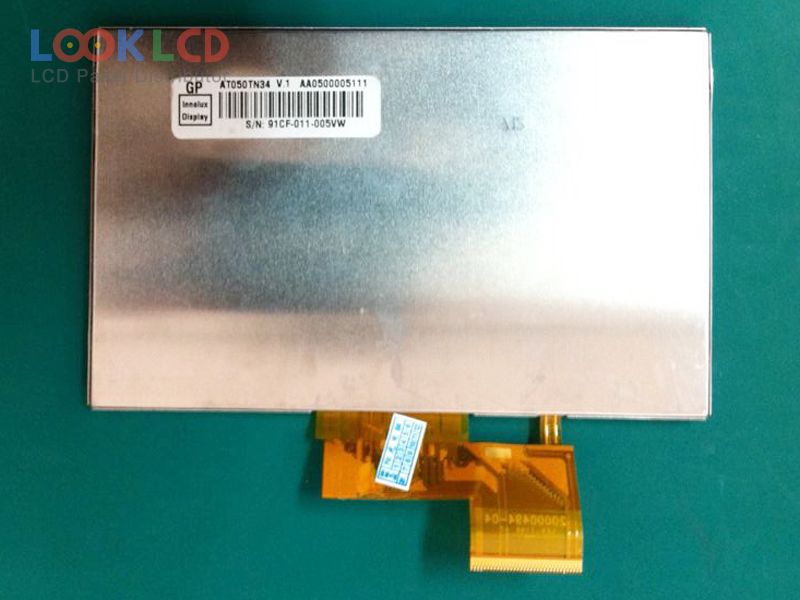

| PartNumber | AT050TN34 V.1 |
| Marca | Innolux |
| mărimea | 5.0 |
| Aplicație | PND |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | INNOLUX |
| model de panou | AT050TN34 V.1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 480(RGB)×272 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 110.88×62.832 mm |
| contur | 120.7×75.8×4.45 mm |
| suprafaţă | Antiglare |
| luminozitatea | |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) |
| aplicarea | PND |
| AA050ME01 | Mitsubishi | 5.0 | 800×480 |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN23 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| ZJ050NA-08C | Innolux | 5.0 | 640×480 |
| A050VW02 V0 | AUO | 5.0 | 480×800 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| LB050WQ3-TD04 | LG Display | 5.0 | 480×272 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS480JC01 | Samsung | 4.8 | 1024×600 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| LR430RC9601 | Innolux | 4.3 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
