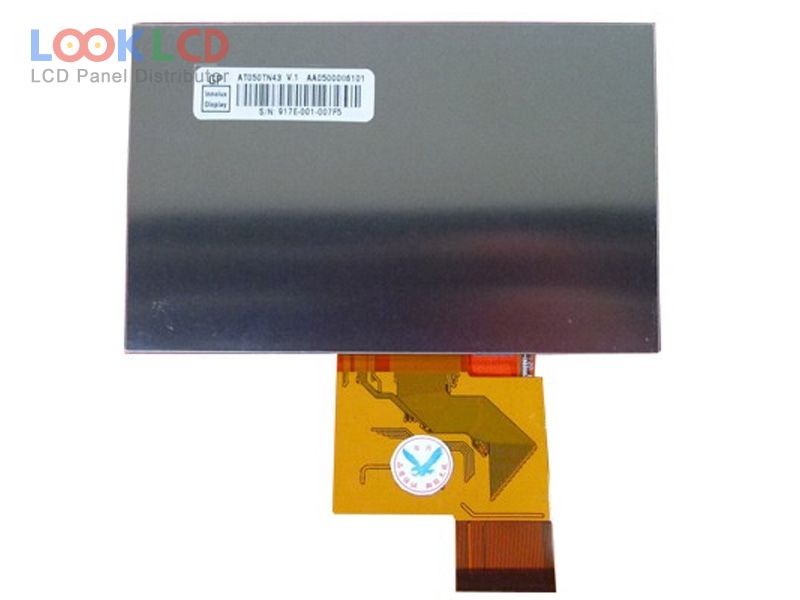

| PartNumber | AT050TN43 V.1 |
| Marca | Innolux |
| mărimea | 5.0 |
| Aplicație | PND |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CHIMEI INNOLUX |
| model de panou | AT050TN43 V.1 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.7×76.3×3.3 mm |
| suprafaţă | Antiglare |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | PND |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN23 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| CLAA048LA0BCW | CPT | 4.8 | 800×480 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| EJ050NA-01D | Innolux | 5.0 | 800×480 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LB043WQ1-TD01 | LG Display | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
