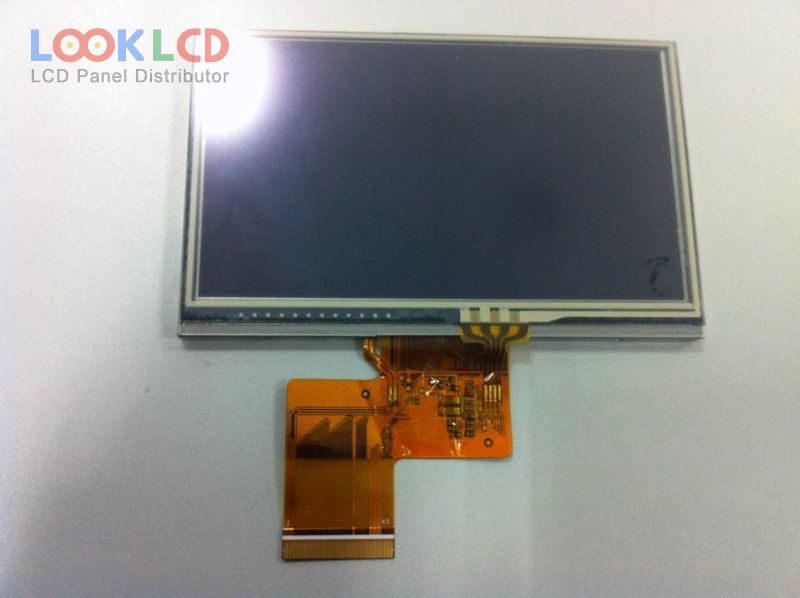

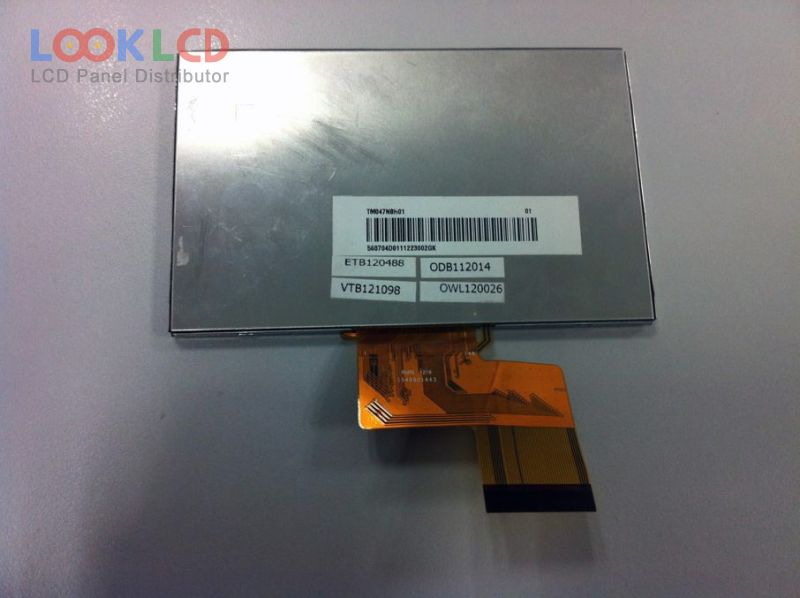

| PartNumber | TM047NBH01 |
| Marca | Tianma |
| mărimea | 4.7 |
| Aplicație | PND |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | 280 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TIANMA |
| model de panou | TM047NBH01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.7 inch |
| rezoluţie | 480(RGB)×272 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 103.68×58.752 mm |
| contur | 114.3×72.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 280 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PND |
