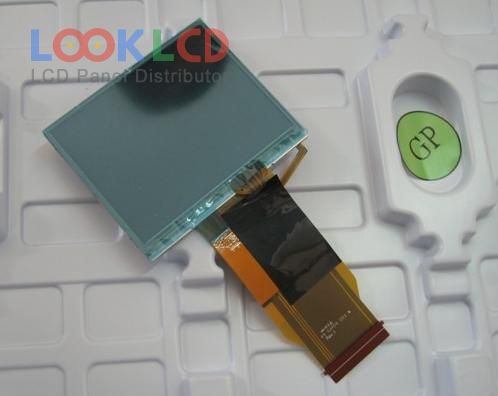

| PartNumber | A035QN01 V4 |
| Marca | AUO |
| mărimea | 3.5 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 350:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A035QN01 V4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 70.08×52.56 mm |
| contur | 76.9×63.9×4.43 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| tensiune de intrare | 3.3/5.0/16/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | DSC |
| A035QN01 V4 | AUO | 3.5 | 320×240 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| A035QN05 V0 | AUO | 3.5 | 320×240 |
| A035QN05 V1 | AUO | 3.5 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LMS350GF03-001 | Samsung | 3.5 | 320×240 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| PJ035MA-02A | Innolux | 3.5 | 320×480 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| 990000270 | TPO | 2.5 | 320×240 |
| A027DN03 V1 | AUO | 2.7 | 320×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| LTV350QV-F07 | Samsung | 3.5 | 320×240 |
| PA025XSF | E Ink | 2.5 | 480×234 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| TD015THEB2 | TPO | 1.5 | 480×240 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
