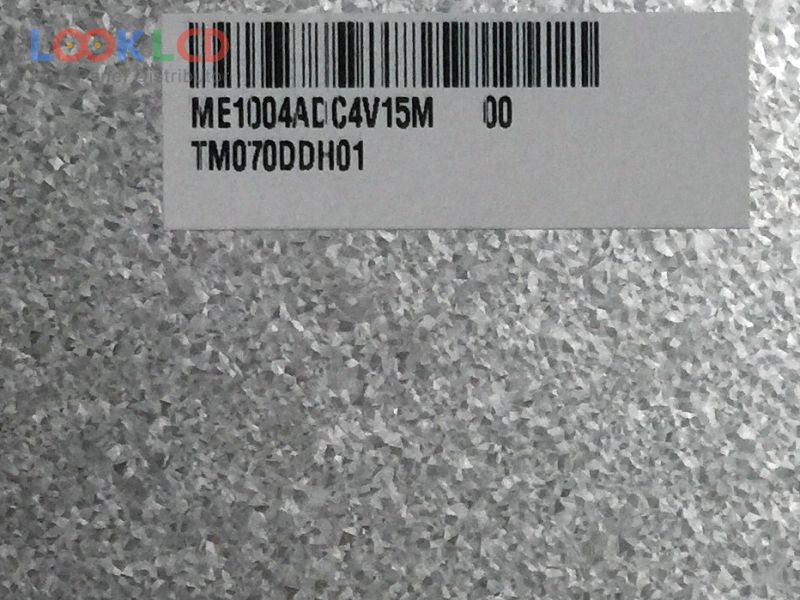

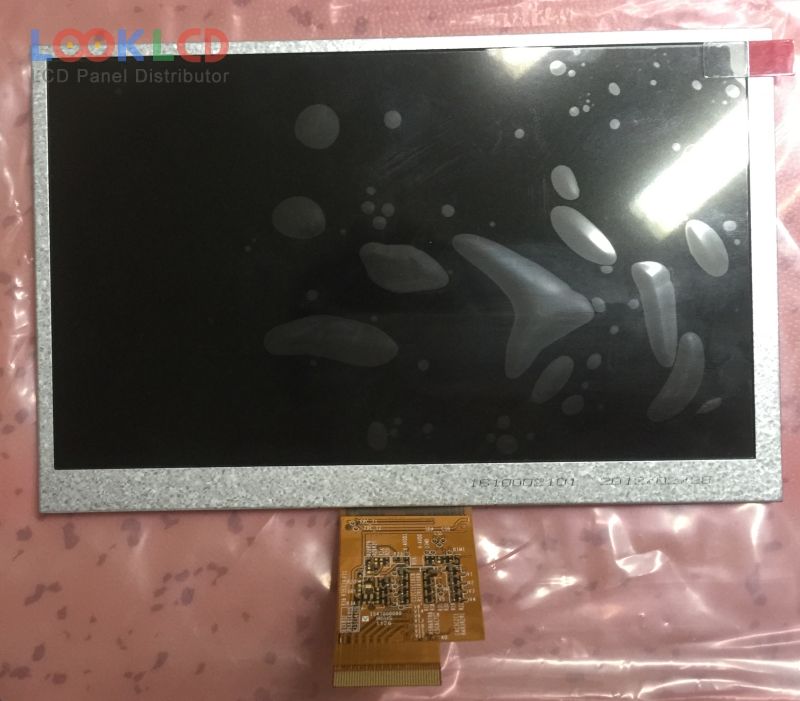

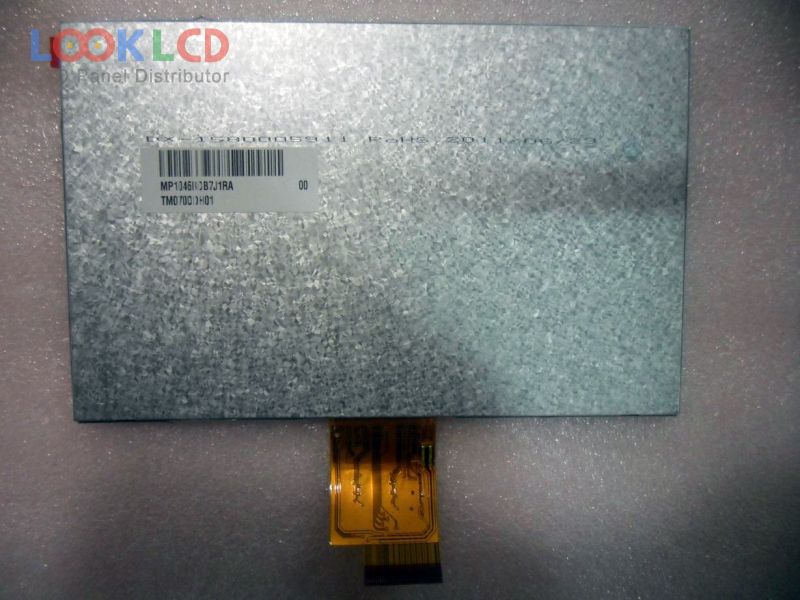

| PartNumber | TM070DDH01 |
| Marca | Tianma |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | TIANMA |
| model de panou | TM070DDH01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.75×105.39×3.7 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3/11/20/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | MP4 |
