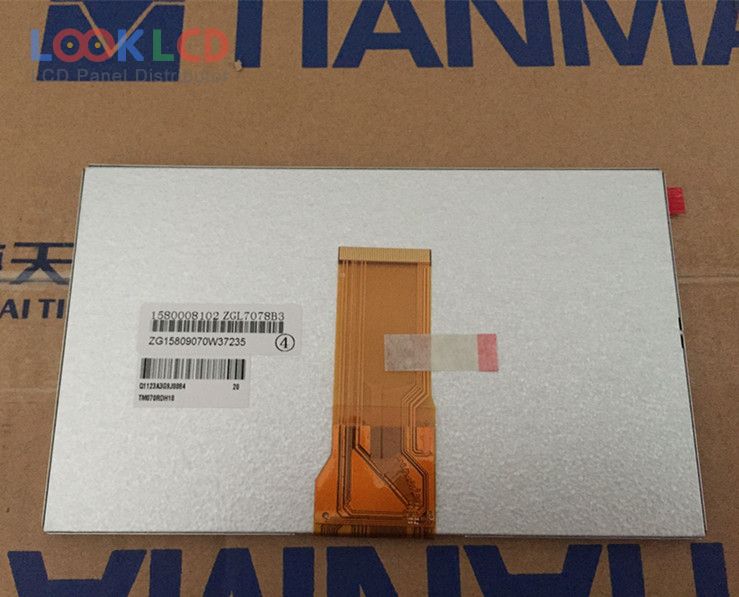

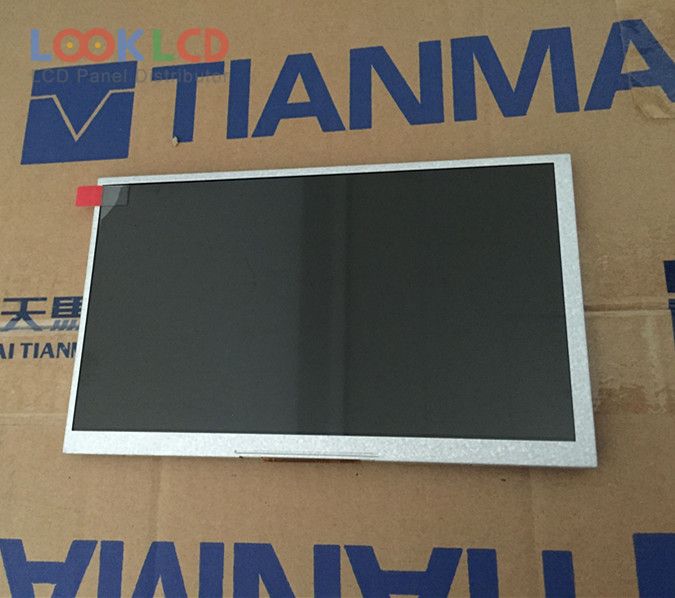

| PartNumber | TM070RDH10 |
| Marca | Tianma |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TIANMA |
| model de panou | TM070RDH10 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.08×85.92 mm |
| contur | 164.9×100×6 mm |
| suprafaţă | Antiglare |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S8PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 50 pins |
| tensiune de intrare | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | DPF |
