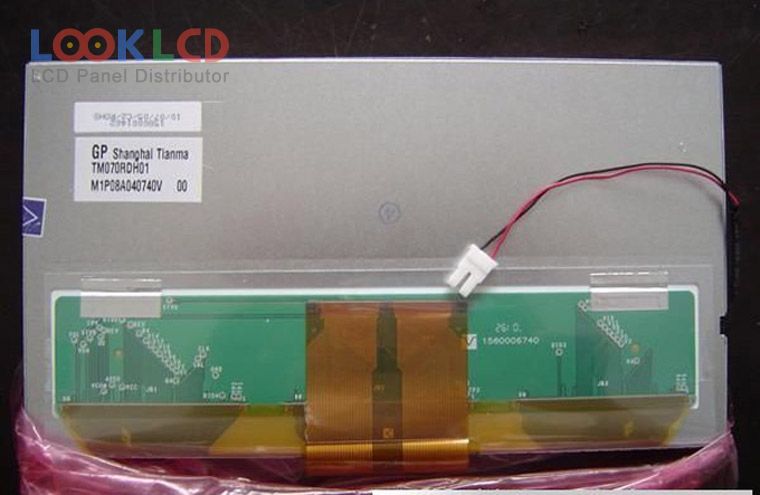

| PartNumber | TM070RDH01 |
| Marca | Tianma |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TIANMA |
| model de panou | TM070RDH01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 157.2×82.32 mm |
| contur | 167×93×6.1 mm |
| suprafaţă | Antiglare |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S10PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| aplicarea | CNS |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| L5F30818P01 | Epson | 6.5 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| LB070WV3-SD01 | LG Display | 7.0 | 800×480 |
| LQ058T5DG31 | SHARP | 5.8 | 480×240 |
| LQ064A5CG01 | SHARP | 6.4 | 480×234 |
| LQ6BW506 | SHARP | 5.8 | 400×234 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
