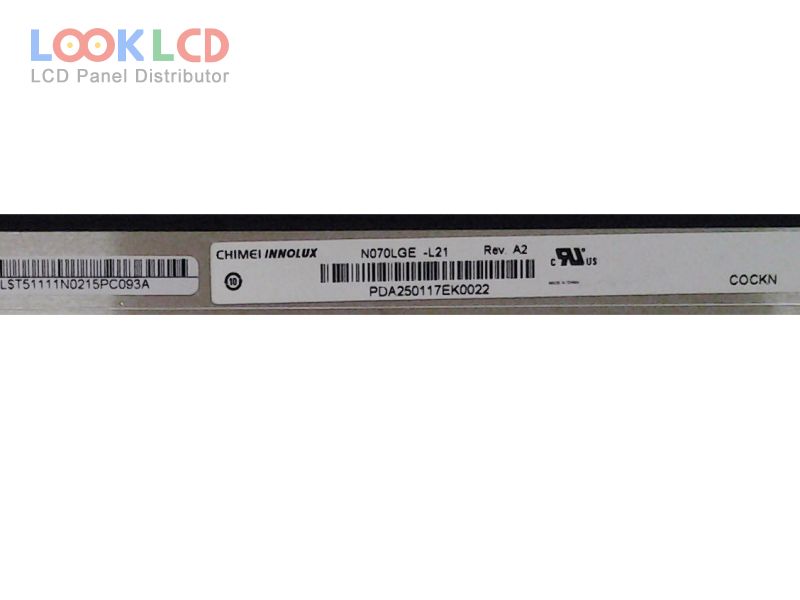

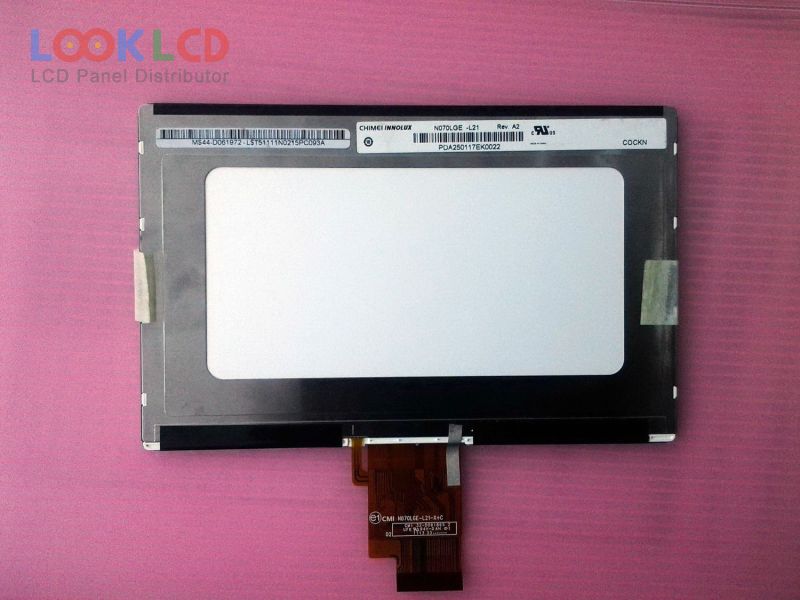

| PartNumber | N070LGE-L21 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 750:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | N070LGE-L21 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.75×105.39×3.4 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 750:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 5/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/11.14V (Typ.)(VDD/AVDD) |
| aplicarea | MP4 |
| 70WVW2T | SII | 7.0 | 800×480 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070T5DG01 | SHARP | 7.0 | 854×480 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LMS430HF12-003 | Samsung | 4.3 | 480×272 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
