Innolux AT080TN03 V.7 fișă de date, specificație, stocuri, aplicație www.looklcd-ro.com
LookLCD LookLCD

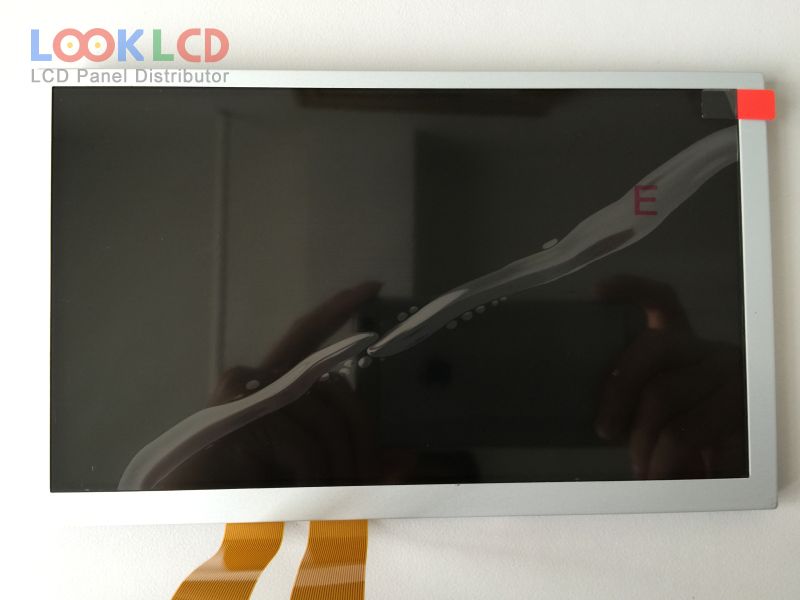

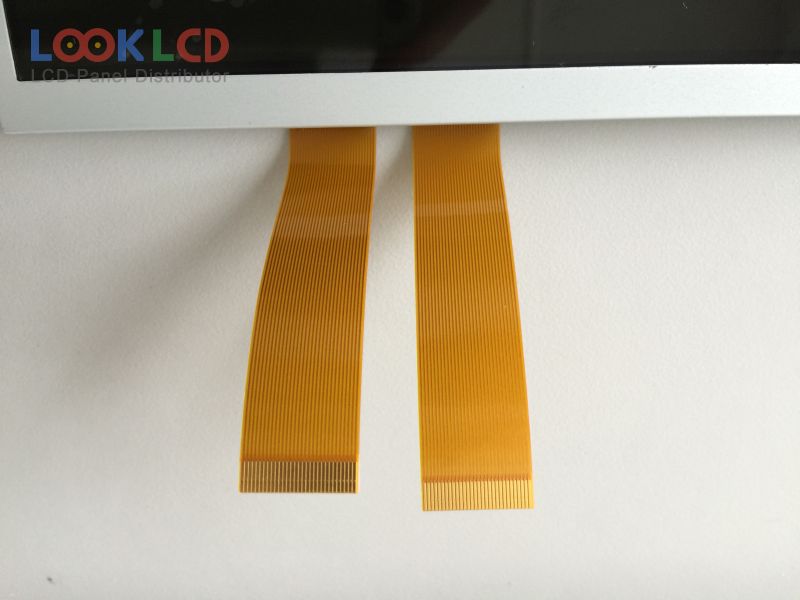

AT080TN03 V.7

AT080TN03 V.7
AT080TN03 V.7
AT080TN03 V.7
AT080TN03 V.7 thumb AT080TN03 V.7 thumb AT080TN03 V.7 thumb
Marca
Innolux
mărimea
8.0
Aplicație
DPF
Rezoluţie
800×480
Compoziţie
LCM
Luminozitate
300
CR
300:1
Culori
262K
Iluminare de fundal
WLED
Interfață
TTL
In Stock
9409
Specificații

PartNumber AT080TN03 V.7
MarcaInnolux
mărimea8.0
AplicațieDPF
Rezoluţie800×480
CompoziţieLCM
Luminozitate300
CR300:1
Culori262K
Iluminare de fundalWLED
InterfațăTTL
marca panouluiINNOLUX
model de panouAT080TN03 V.7
tip panou a-Si TFT-LCD , LCM
dimensiunea panoului8.0 inch
rezoluţie800(RGB)×480 , WVGA
modul de afișareTN, Normally White, Transmissive
Zonă activă176.64×99.36 mm
contur192.8×116.9×6.7 mm
suprafaţăAntiglare
luminozitatea300 cd/m² (Typ.)
Raport de contrast300:1 (Typ.)
culorile afișajului262K (6-bit)
timp de raspuns15/20 (Typ.)(Tr/Td)
unghi de vedere65/65/45/65 (Typ.)(CR≥10)(L/R/U/D)
frecvență60Hz
tip lampa3S9PWLEDWithout Driver
interfață de semnalParallel RGB (1 ch, 6-bit), 60 pins
tensiune de intrare3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
aplicareaDPF
Model de familie
AT080TN01 Innolux 8.0 800×480
AT080TN03 V.1 Innolux 8.0 800×480
AT080TN03 V.2 Innolux 8.0 800×480
AT080TN03 V.7 Innolux 8.0 800×480
AT080TN42 Innolux 8.0 800×600
AT080TN42 V.1 Innolux 8.0 800×600
AT080TN43 Innolux 8.0 800×600
AT080TN52 Innolux 8.0 800×600
AT080TN52 V.1 Innolux 8.0 800×600
AT080TN64 Innolux 8.0 800×480
