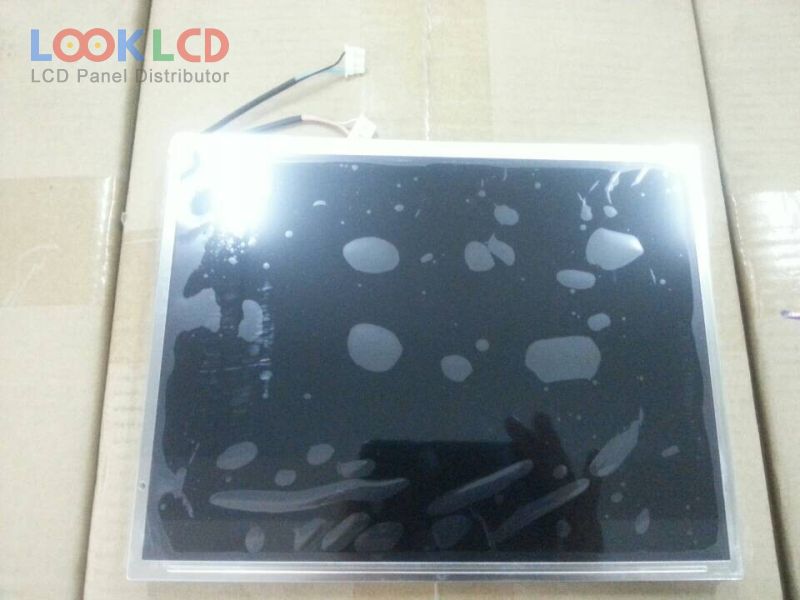

| PartNumber | LTA104S1-L01 |
| Marca | Samsung |
| mărimea | 10.4 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTA104S1-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 226×177.8 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/30 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/35/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DPF |
