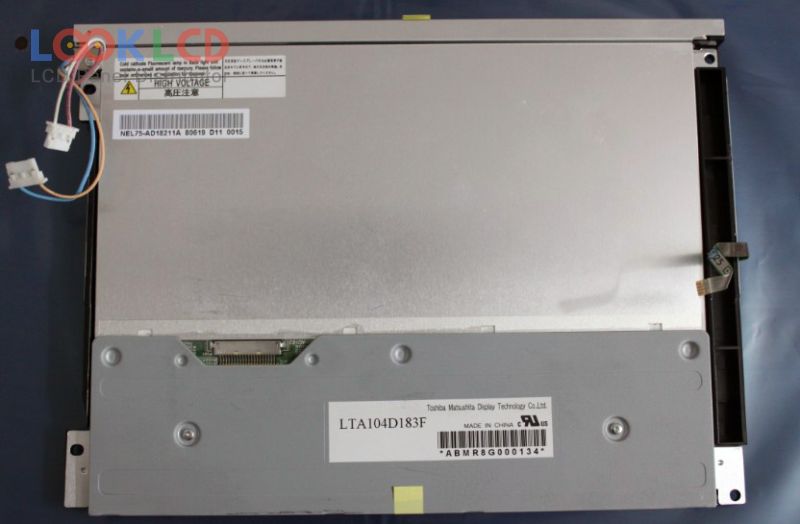

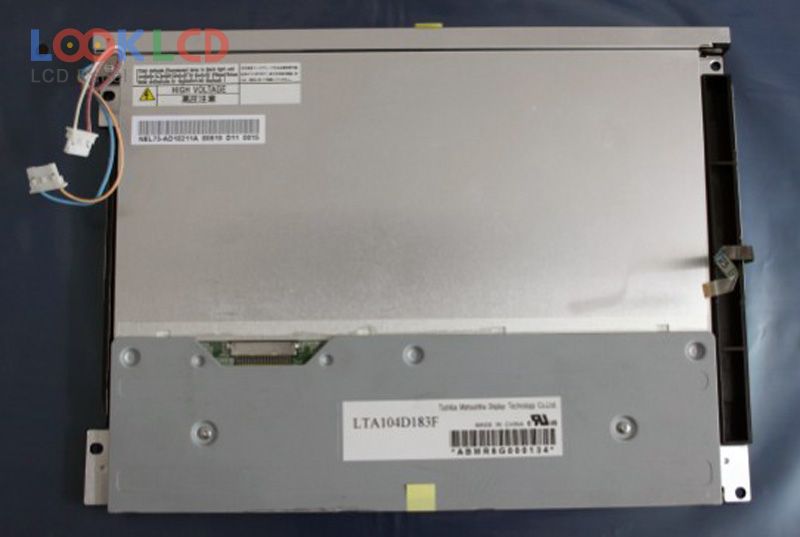

| PartNumber | LTA104D183F |
| Marca | TOSHIBA |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 320 |
| CR | 450:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | Toshiba Matsushita |
| model de panou | LTA104D183F |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 242×178.5 mm |
| suprafaţă | |
| luminozitatea | 320 cd/m² (Typ.) |
| Raport de contrast | 450:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 8/17 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
