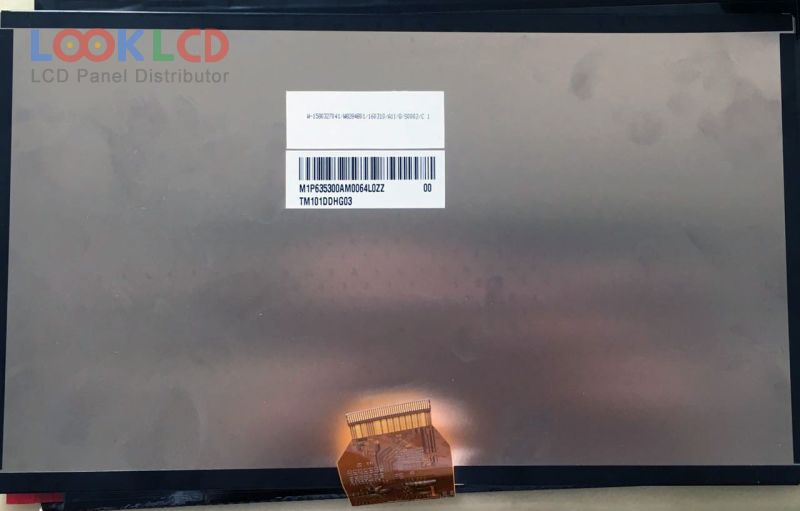

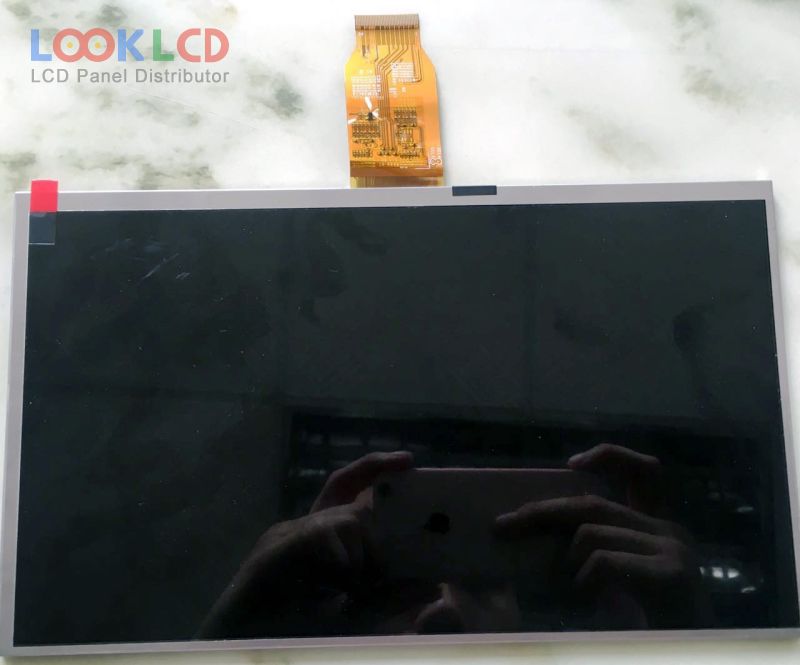

| PartNumber | TM101DDHG03 |
| Marca | Tianma |
| mărimea | 10.1 |
| Aplicație | IA |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | TIANMA |
| model de panou | TM101DDHG03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 233×137×3.2 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 7/9 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/75/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S10PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 41 pins |
| tensiune de intrare | 3.3/11.02/21.14/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | IA |
