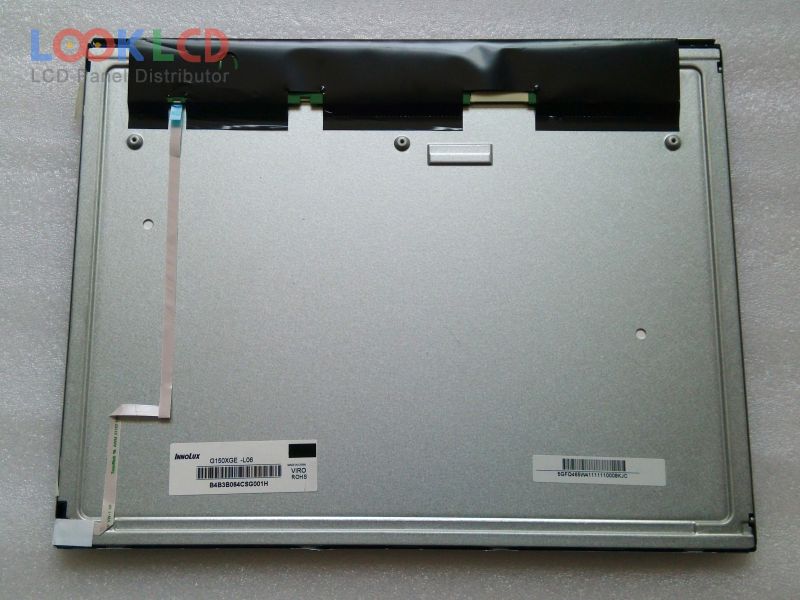

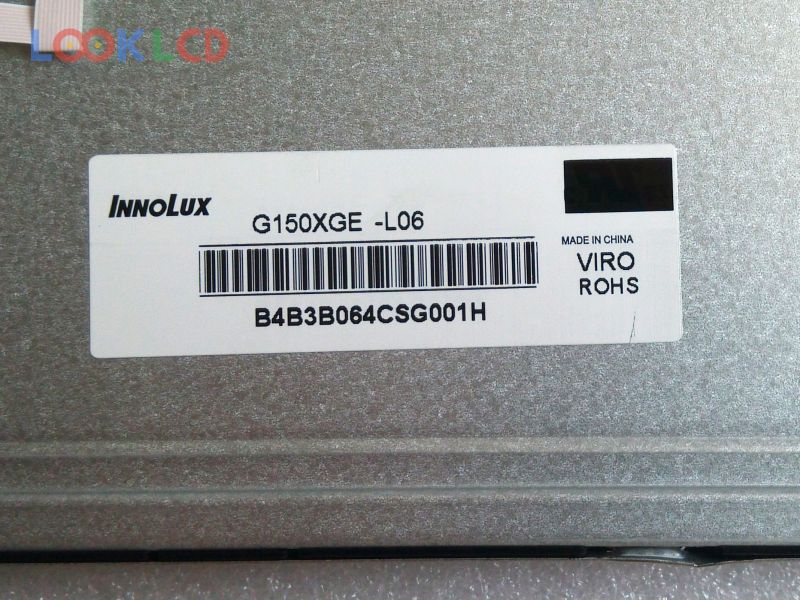

| PartNumber | G150XGE-L06 |
| Marca | Innolux |
| mărimea | 15.0 |
| Aplicație | IA |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 700:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | INNOLUX |
| model de panou | G150XGE-L06 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 304.128×228.096 mm |
| contur | 326.5×253.5×12.06 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/25/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
