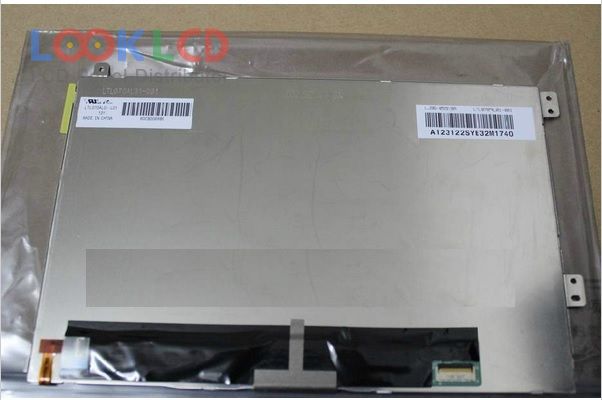

| PartNumber | LTL070AL01-L01 |
| Marca | Samsung |
| mărimea | 7.0 |
| Aplicație | UMPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTL070AL01-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 150.72×94.2 mm |
| contur | 164.2×106.75×4.42 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S4PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
| 70WVW4A | SII | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| LTA070B0C0A | TOSHIBA | 7.0 | 480×234 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
| LB048WV1-TL01 | LG Display | 4.8 | 800×480 |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LQ055W1GC01 | SHARP | 5.5 | 1024×600 |
| LTD056ET0S | TOSHIBA | 5.6 | 1024×600 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070Y1-T01 | Innolux | 7.0 | 800×480 |
