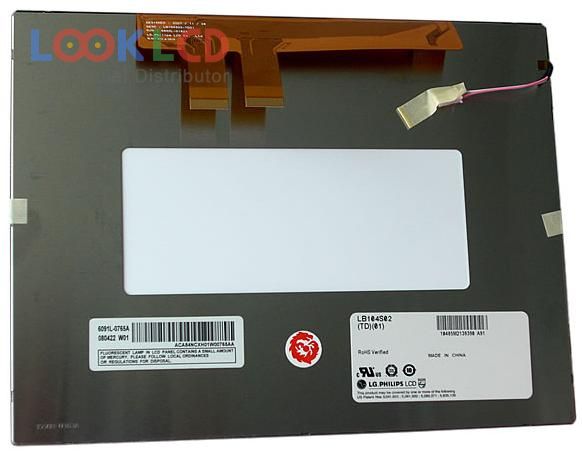

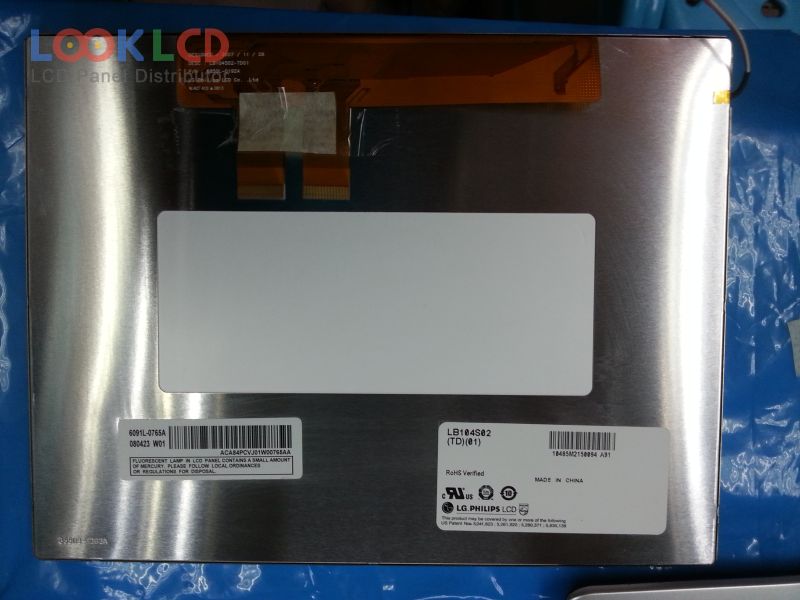

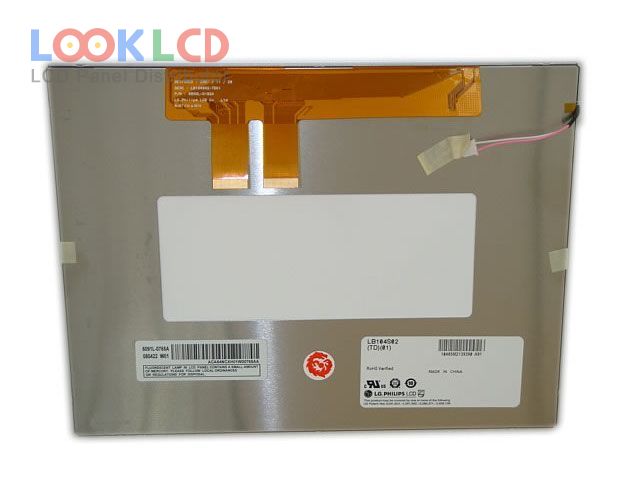

| PartNumber | LB104S02-TD01 |
| Marca | LG Display |
| mărimea | 10.4 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | LG Display |
| model de panou | LB104S02-TD01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 234.7×178.6 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 6/19 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/55/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/9.32/17.55/-4.99V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | DPF |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| EL640.480-A4 SBS | PLANAR | 10.4 | 640×480 |
| LB104S01-TL01 | LG Display | 10.4 | 800×600 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LB104S02-TD01 | LG Display | 10.4 | 800×600 |
| LB104S04-TL01 | LG Display | 10.4 | 800×600 |
| LB104S04-TL02 | LG Display | 10.4 | 800×600 |
| LQ104V1LG81 | SHARP | 10.4 | 640×480 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| LTD104KA1S | TOSHIBA | 10.4 | 1024×768 |
| A070SN01 V3 | AUO | 7.0 | 800×600 |
| A104SN03 V0 | AUO | 10.4 | 800×600 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| PA079DS4 | E Ink | 7.9 | 480×234 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
