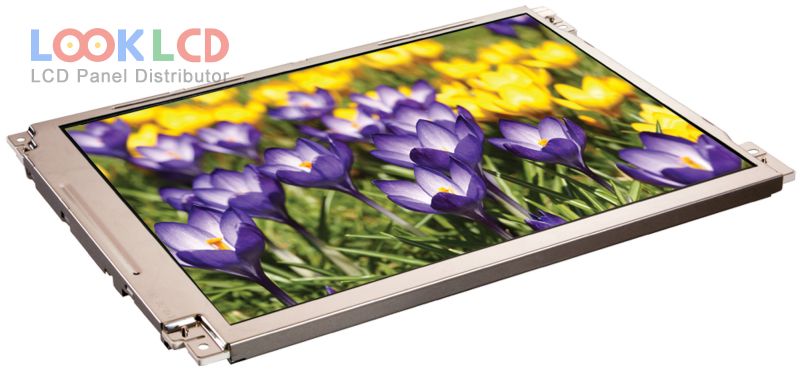

| PartNumber | LQ104V1LG81 |
| Marca | SHARP |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SHARP |
| model de panou | LQ104V1LG81 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 246.5×179.3×13 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/65/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
