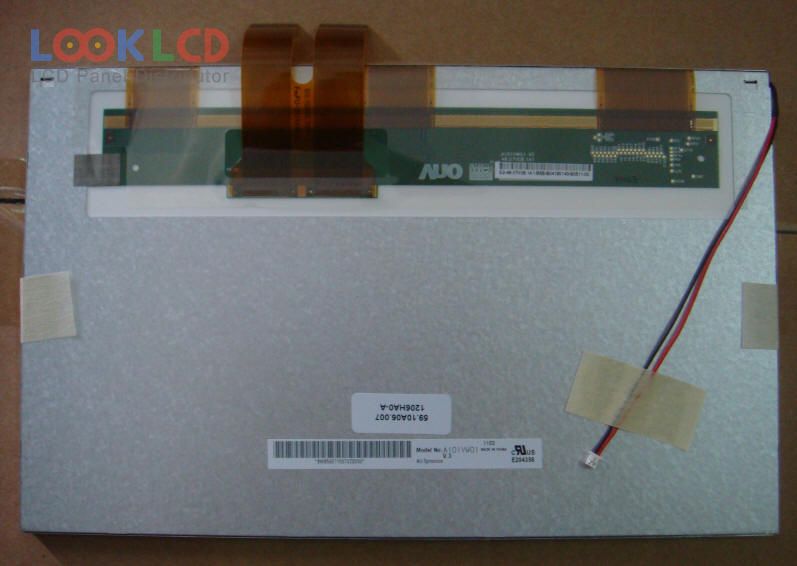

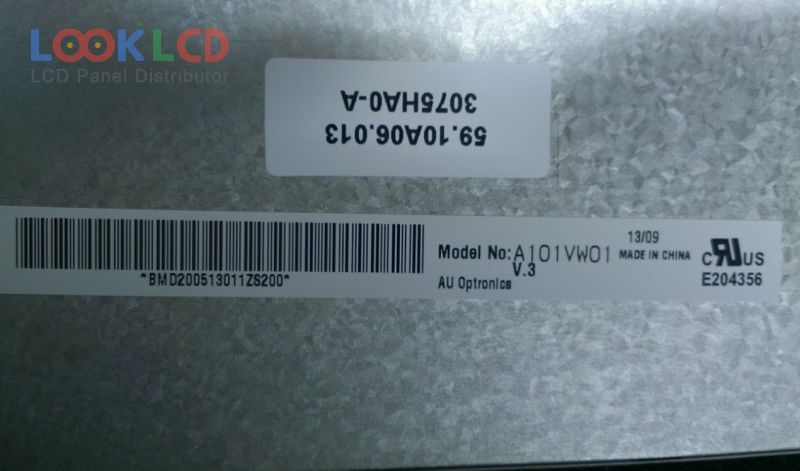

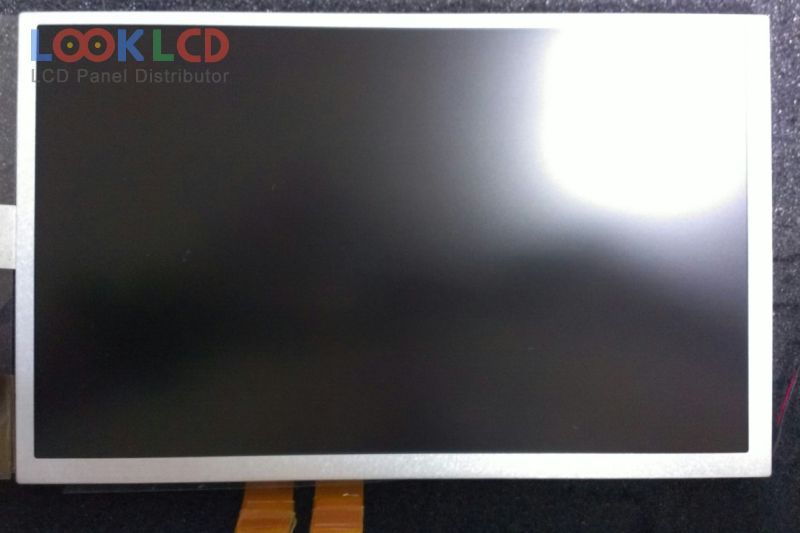

| PartNumber | A101VW01 V3 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A101VW01 V3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 219.6×131.76 mm |
| contur | 235×145.9 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193148% |
| timp de raspuns | 12/18 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S11PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | DPF |
