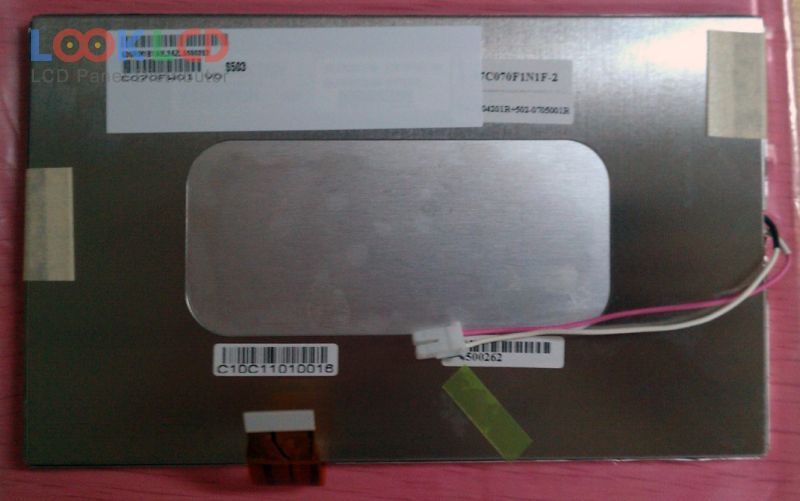

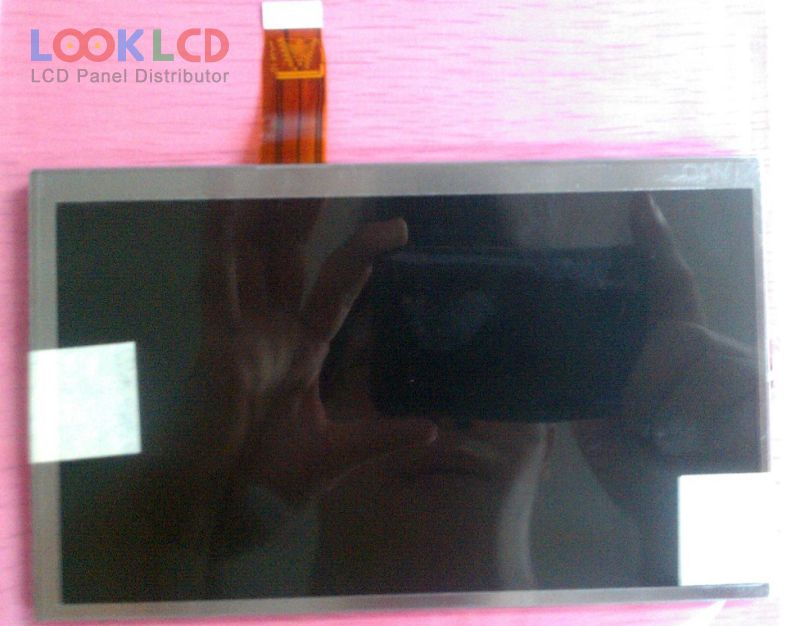

| PartNumber | C070FW01 V0 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 480×234 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 300:1 |
| Culori | |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | AUO |
| model de panou | C070FW01 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.08×86.58 mm |
| contur | 164.9×100 mm |
| suprafaţă | Antiglare (Haze 25%) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | , CIE193148% |
| timp de raspuns | 12/18 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 26 pins |
| tensiune de intrare | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | CNS |
