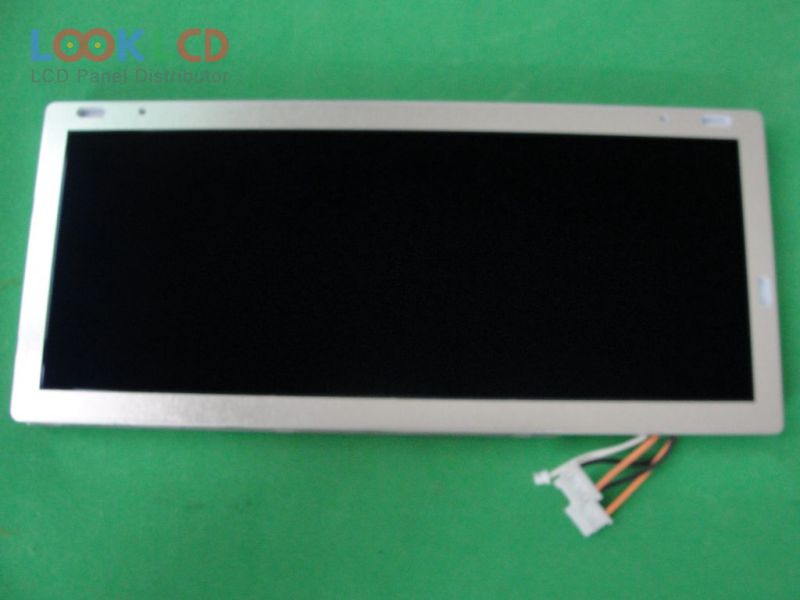

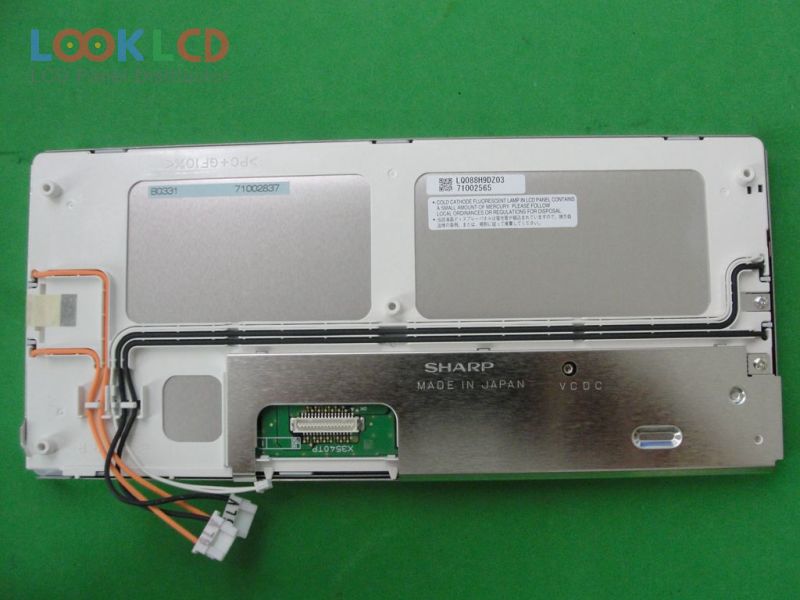

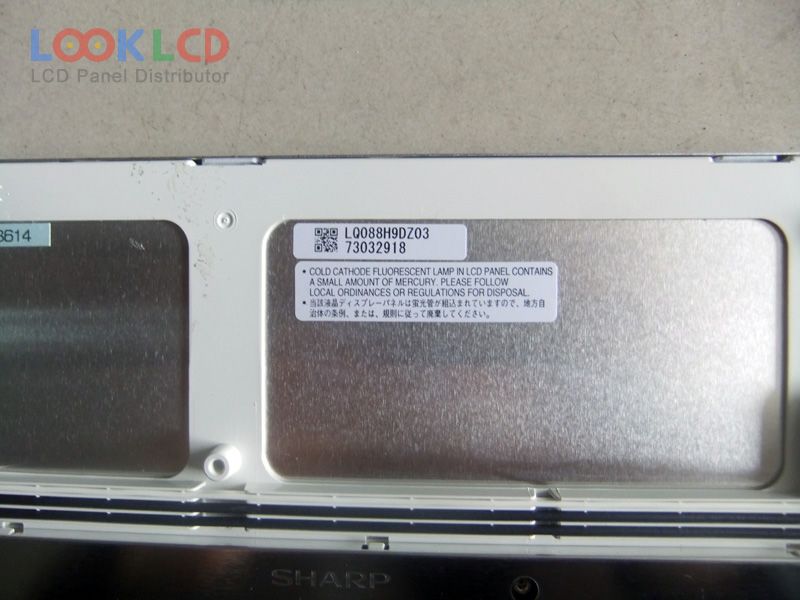

| PartNumber | LQ088H9DZ03 |
| Marca | SHARP |
| mărimea | 8.8 |
| Aplicație | CNS |
| Rezoluţie | 640×240 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 180:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ088H9DZ03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.8 inch |
| rezoluţie | 640(RGB)×240 , HVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 209.28×78.48 mm |
| contur | 231.6×103.3 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 180:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/45/45 (Typ.)(CR≥15)(L/R/U/D) |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplicarea | CNS |
