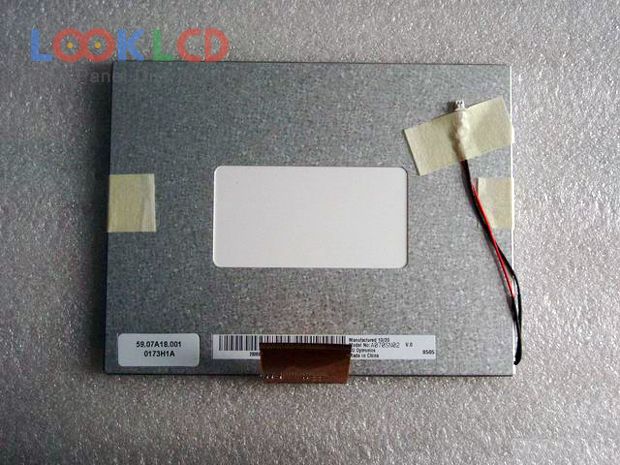

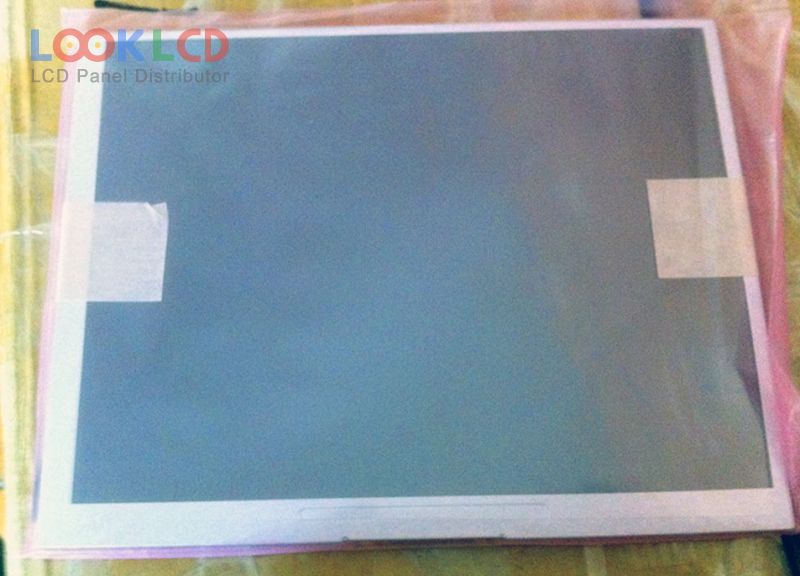

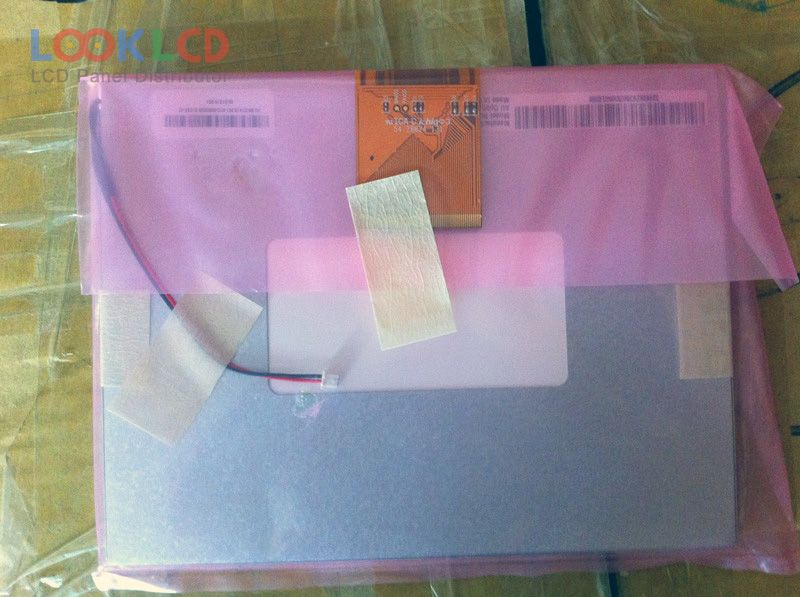

| PartNumber | A070SN02 V0 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 16.2M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A070SN02 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800×600(RGB) , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 141.6×106.2 mm |
| contur | 154×119.2×5.08 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + Dithering), CIE193150% |
| timp de raspuns | 4/16 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 8-bit) + SPI, 60 pins |
| tensiune de intrare | 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL) |
| aplicarea | DPF |
