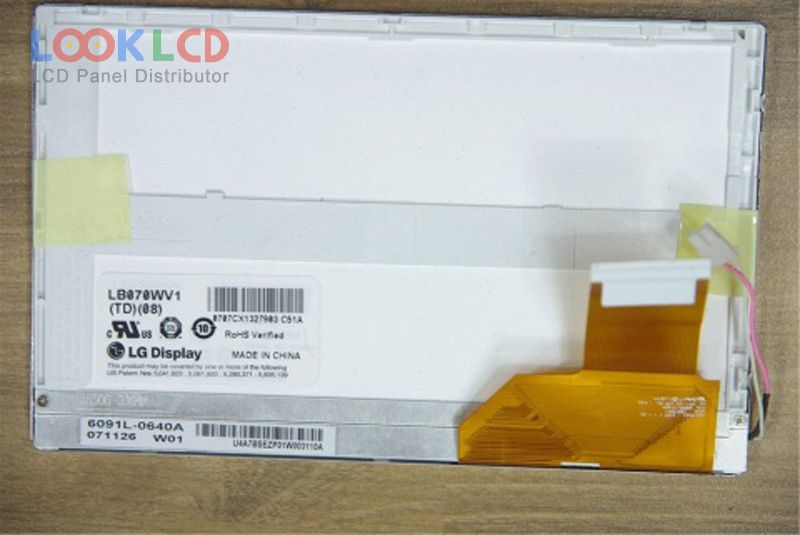

| PartNumber | LB070WV1-TD08 |
| Marca | LG Display |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | LG.Philips LCD |
| model de panou | LB070WV1-TD08 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 167×104.6×5.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 3.3V (Typ.)(VCC) |
| aplicarea | DPF |
| LB070WQ4-TM01 | LG Display | 7.0 | 480×234 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LB070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LB070WV3-SD03 | LG Display | 7.0 | 800×480 |
| LB070WV4-TJ01 | LG Display | 7.0 | 800×480 |
| LB070WV7-TD01 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
