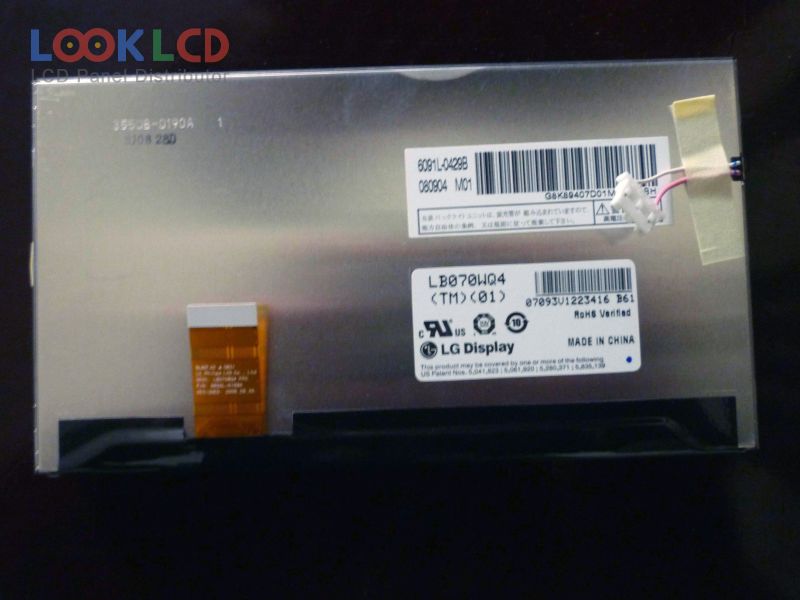

| PartNumber | LB070WQ4-TM01 |
| Marca | LG Display |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 480×234 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 400:1 |
| Culori | Full color |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | LG.Philips LCD |
| model de panou | LB070WQ4-TM01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 156.24×82.368 mm |
| contur | 167×93×7.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | Full color , CIE193145% |
| timp de raspuns | 50/75 (Max.)(Tr/Td) |
| unghi de vedere | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 30 pins |
| tensiune de intrare | 3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
| aplicarea | CNS |
