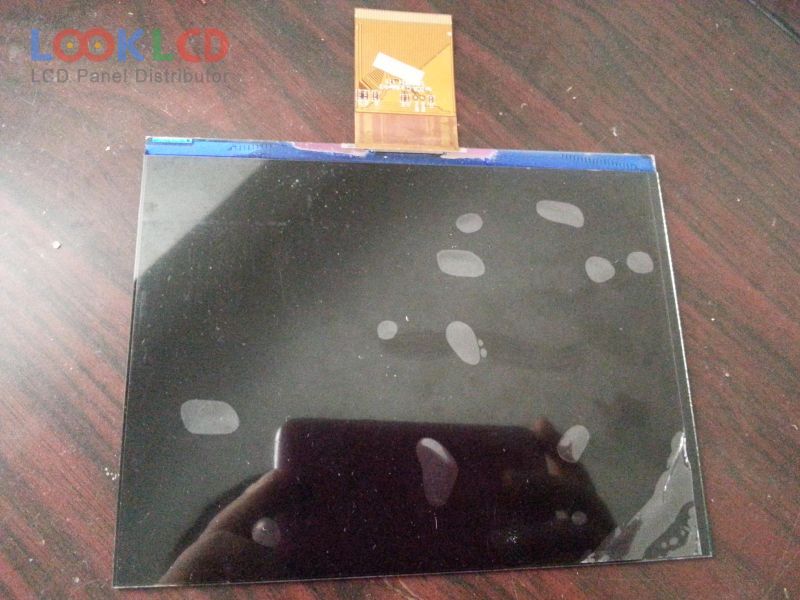

| PartNumber | A070SN02 V0 CELL |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 500:1 |
| Culori | 16.2M |
| Iluminare de fundal | No B/L |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A070SN02 V0 CELL |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800×600(RGB) , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 141.6×106.2 mm |
| contur | 150×116.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| adâncimea sticlei | 0.50+0.50 mm |
| transmisivitatea | 4.11% (Typ.)(with Polarizer) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + Dithering), CIE193150% |
| timp de raspuns | 12/18 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| interfață de semnal | TTL (1 ch, 8-bit) + SPI, 60 pins |
| tensiune de intrare | 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL) |
| aplicarea | DPF |
| A070SN02 V0 | AUO | 7.0 | 800×600 |
| A070SN02 V0 CELL | AUO | 7.0 | 800×600 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| DLC0700JBG-T-6 | Other | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| HV070WS1-100 | HYDIS | 7.0 | 1024×600 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LB070WQ5-TD01 | LG Display | 7.0 | 480×240 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG02 | SHARP | 7.0 | 800×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
