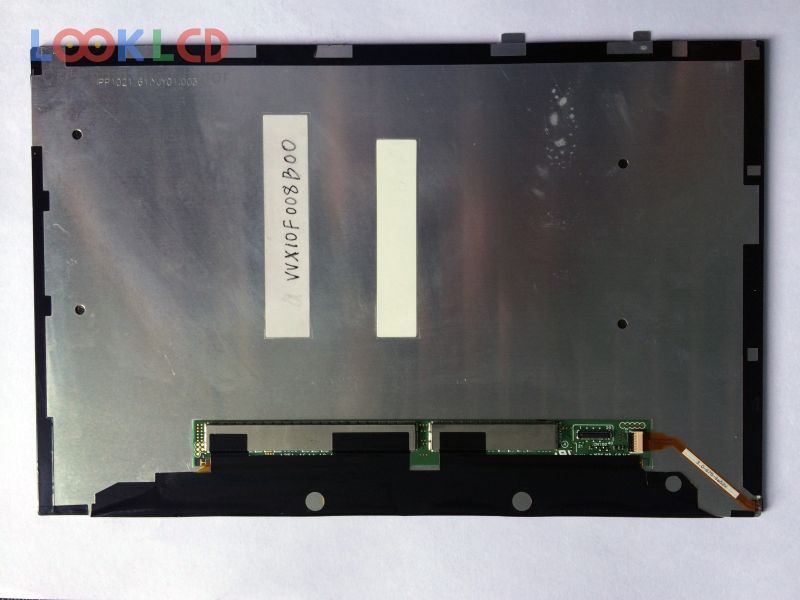

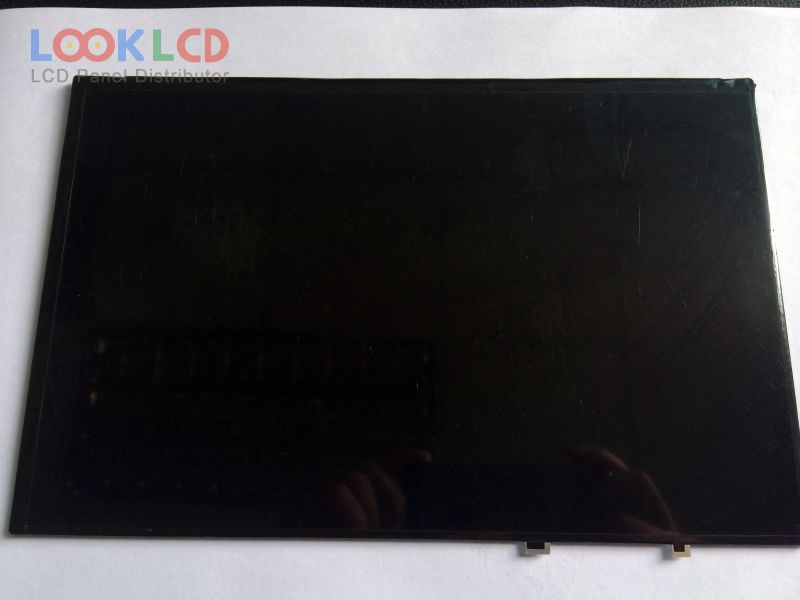

| PartNumber | VVX10F008B00 |
| Marca | Panasonic |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 385 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | Panasonic |
| model de panou | VVX10F008B00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 217.44×135.9 mm |
| contur | 228.96×148.14×4.29 mm |
| suprafaţă | Hard coating |
| luminozitatea | 385 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193174% |
| timp de raspuns | 30 (Max.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S6PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 40 pins |
| tensiune de intrare | 3.7V (Typ.) |
| aplicarea | PAD |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| VVX10F002A00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
| AMS767KC04-1 | Samsung | 7.7 | 1280×800 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HV089WU1-1E0 | HYDIS | 8.9 | 1920×1200 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
