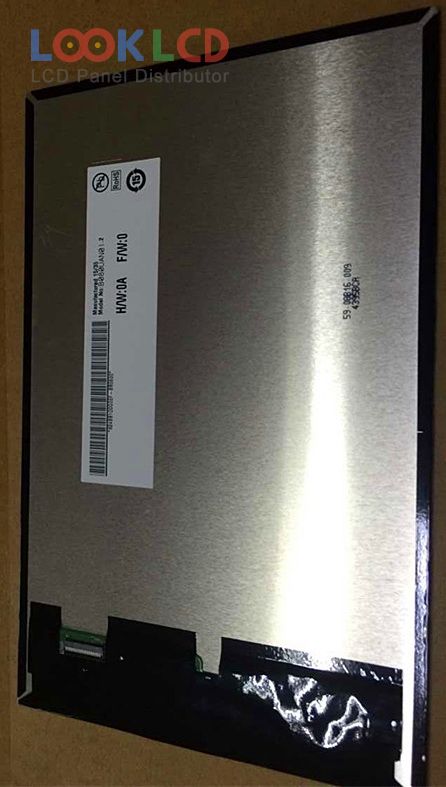

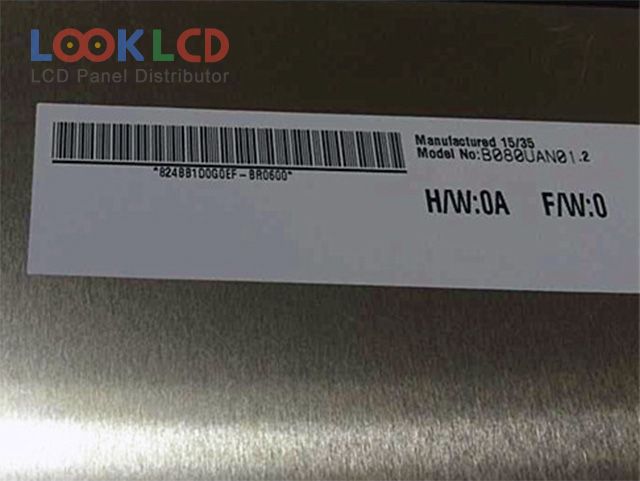

| PartNumber | B080UAN01.2 |
| Marca | AUO |
| mărimea | 8.0 |
| Aplicație | PAD |
| Rezoluţie | 1200×1920 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | AUO |
| model de panou | B080UAN01.2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 1200(RGB)×1920 , WUXGA |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 107.64×172.224 mm |
| contur | 114.6×183.32×3.8 mm |
| suprafaţă | Hard coating |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 stringsWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 39 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| B080UAN01.2 | AUO | 8.0 | 1200×1920 |
| B080UAN01.4 | AUO | 8.0 | 1200×1920 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LD080UX1-SMA2 | LG Display | 8.0 | 1200×1600 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| PD080SL3 | E Ink | 8.0 | 800×600 |
| B080UAN01.2 | AUO | 8.0 | 1200×1920 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| HV070WX2-1E0 | HYDIS | 7.0 | 800×1280 |
| LTL075PL01-001 | Samsung | 7.5 | 1050×1400 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
